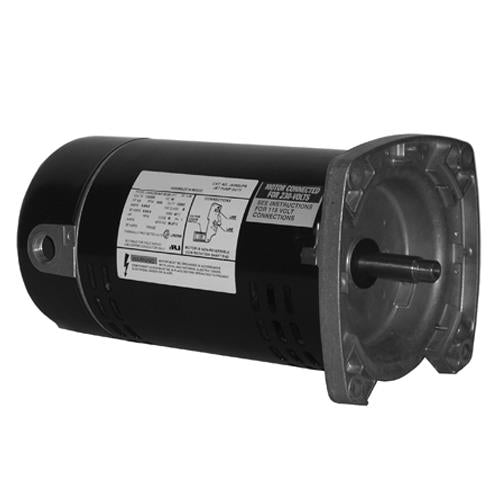

JJ2002-2 U.S. Motors Jet Pump Motor (Capacitor Start, 2 HP, 56J Frame, C-Face, 3600 RPM, 230 Volt, Single Phase, ODP Enclosure, Footless)
JJ2002-2 U.S. Motors Jet Pump Motor (Capacitor Start, 2 HP, 56J Frame, C-Face, 3600 RPM, 230 Volt, Single Phase, ODP Enclosure, Footless)
[COUNT] shoppers are looking at this right now
SKU:JJ2002-2
Regular price
$433.64 USD
Regular price
$0.00 USD
Sale price
$433.64 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
US Motors Emerson JJ2002-2, HP: 2, RPM: 3600, Volts: 230, Frame: 56J, Motor Face: C-Face, Enclosure: ODP, Type: Single Phase Jet, Booster and Centrifugal Pump Motor, Motor Start: Capacitor Start ,
| Applications |
| For jet pumps, booster pumps, centrifugal pumps, lawn sprinkler pumps. |
| Features |
| 303 Stainless Steel Shaft; C-Face: 7/16-20 UNF2A thread; Square Flange: 1/2-20 UNC-2A thread; Ball Bearings (Locked Drive End Bearing); Continuous Duty; 60 Hertz; E-Z Access Motor Cover; 40C Ambient; Automatic Reset Thermal Overload Protector; Round Frame (Without Base), NEMA 56C C-Face or Square Flange Mounting; Power Leads Supplied For Proper Connection To Pressure Switch; Voltage Selector Switch (Catalog Numbers Ending With "-2V" and "UPR") |
|
Tech Specs. |
|
|
Brand
|
U.S. Motors/Emerson Pump Motor
|
|
Model Number
|
JJ2002-2
|
|
HP
|
2
|
|
RPM
|
3600
|
|
Volts
|
230
|
|
SF
|
1.2
|
|
Frame
|
56J
|
|
Full Load Amps
|
8.6
|
|
"C" Dim.
|
14.52
|
|
Apx. Wt. (lb)
|
27
|
|
Motor Face
|
C-Face
|
|
Phase
|
Single
|
|
Motor Mount
|
Footless
|
|
Enclosure
|
ODP
|
|
Type
|
Single Phase Jet, Booster and Centrifugal Pump Motor
|
|
Notes
|
Two Compartment, E-Z Access Motor Cover
|
|
Motor Start
|
Capacitor Start
|
|
|
|
|
|
|
|
|
|
