U.S. Motors

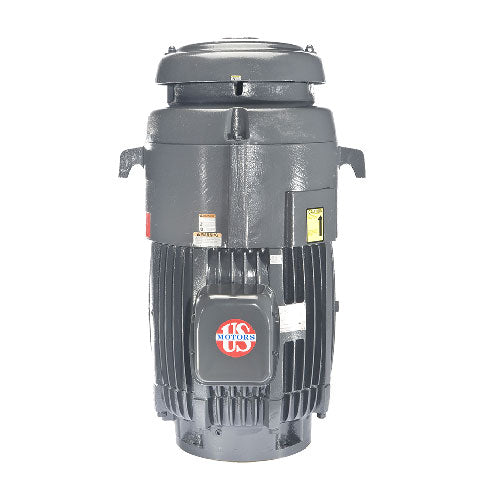

HT200P2CLG US Motor HOLLOSHAFT® High Thrust Motor (200 HP, 3 Phase, TEFC, 1785 RPM, 447 Frame)
HT200P2CLG US Motor HOLLOSHAFT® High Thrust Motor (200 HP, 3 Phase, TEFC, 1785 RPM, 447 Frame)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:HT200P2CLG
Regular price
$36,141.91 USD
Regular price
$0.00 USD
Sale price
$36,141.91 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
HT200P2CLG US Motor HOLLOSHAFT® High Thrust Motor (200 HP, 3 Phase, TEFC, 1785 RPM, 447 Frame)
| Model_Number: | FS94 |
| PRODUCT NAME: | 200 HP - TEFC - 1785 |
| PHASETYPE: | 3_PHASE |
| MOTOR ENCLOSURE: | TEFC |
| HORSEPOWER: | 200 |
| KILOWATTS: | 149.1 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1785 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 460 |
| VOLTS : | 460 |
| FRME : | 447 |
| SHAFT CODE: | TP |
| MOUNTING: | VERT |
| ASSEMBLY POSITION: | NA |
| MOTOR TYPE: | TUS |
| OPPOSITE END BEARING: | 7320 BEM |
| SHAFT END BEARING: | 6218-J/C3 |
| AMBIENT: | 40 |
| ROTATION: | DUAL |
| SERVICE FACTOR: | 1.15 |
| STARTCAPMFD: | N\A |
| SHIPPING WEIGHT: | 2300 |
| BREAKDOWN TORQUE: | 273 |
| BREAKDOWN TORQUE UOM: | PERCENT OF FLT |
| LOCKED ROTOR TORQUE: | 124 |
| LOCKED ROTOR TORQUE UOM: | PERCENT OF FLT |
| INSULATION CLASS: | F |
| KVA CODE LETTER: | F |
| LOCKED ROTOR AMPS: | 1514.7 |
| NEMA NOMINAL EFFICIENCY: | 96.2 |
| FULL LOAD AMPS PRIMARY: | 224 |
| SERVICE FACTOR AMPS PRIMARY: | 258 |
