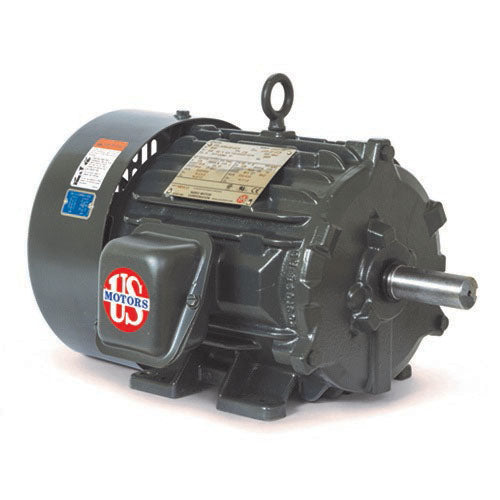

HD40P2E U.S. Motors General Purpose World Motor Hostile Duty Motor (40 HP, 1800 RPM, 230/460 Voltage, 324T Frame)
HD40P2E U.S. Motors General Purpose World Motor Hostile Duty Motor (40 HP, 1800 RPM, 230/460 Voltage, 324T Frame)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:HD40P2E
Regular price
$2,272.46 USD
Regular price
$0.00 USD
Sale price
$2,272.46 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
U.S. Motors HD40P2E, General Purpose Hostile Duty Motor Type, 40 HP, 1800 RPM, 230/460 Voltage, 324T Frame,
| Applications | |
| For pulp & paper plants, saw mills, mines, foundries, chemical plants, waste management facilities, and other process-related industries requiringprotection within harsh operating conditions. | |
| Features | |
| Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power | |
| Corrosion Resistant Mill & Chemical Duty Paint | |
| Cast Iron Frame, Cast Iron End Brackets | |
| Stainless Steel Nameplate & Zinc Plated Hardware | |
| Shaft Slinger On Pulley End For IP54 Protection | |
| Dual Voltage 230/460 Volts (1-100 HP) | |
| Self-Certified Class I, Division 2, Groups A, B, C, & D Double Shielded | |
| Steel Fan Cover & Conduit Box | |
| Field Convertible To F2 Mounting | |
| Condensation Drains With Plastic Plugs | |
| Bearing Caps On 400-440 | |
Specifications | |
Brand |
U.S. Motors |
Catalog Number |
HD40P2E |
Type |
General Purpose Hostile Duty Motor |
HP |
40 |
RPM |
1800 |
Voltage |
230/460 |
Frame |
324T |
SF |
1 .15 |
"C" DIM (Inches) |
30 .1 |
Enclosure |
TEFC |
Symbol |
DS-3HDW |
Type |
Hostile Duty |
Efficiency |
NEMA Premium |
Class |
Class F Insulation |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
