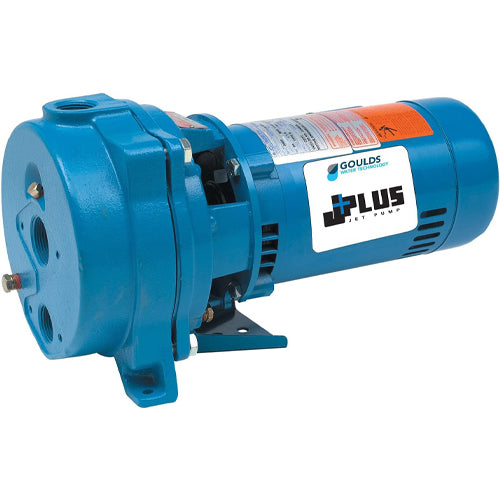

Goulds Pumps J15 Convertible Jet Pump, 1-1/2 HP, 115/230 Volts, 1 Phase, Cast Iron)

Goulds J15, Convertible Jet Pump, J+ Series, 1-1/2 HP, 115/230 Volts, 1 Phase, 1-1/4" NPT Suction, 1" NPT Discharge, Cast Iron Body

FEATURES
Goulds J+ Convertible Jet Pump

This pump may be used on shallow or deep well applications using appropriate Goulds fittings. It is engineered with a back pullout design for easy service without disturbing piping.

Includes:

Pump and motor
Pressure gauge and bushing
Pressure switch (Part# AS4)
Tubing and fittings
Please note that if using this pump for NEW INSTALLATIONS in deep well applications, a deepwell jet assembly package in either twin pipe or packer style must be purchased separately (see brochure in Manuals tab for choosing the approprate jet assembly). In addition, a JDW fitting package or an AV22KIT is required to make the pressure switch connection.

Features

Two compartment motor for access to wiring and replaceable components
Nozzle clean out plug in shallow well adapter
Corrosion resistant, plastic tubing and fittings are easily removed for cleaning
Premium O-ring design fittings need only be hand tight to seal
Corrosion and abrasion resistant glass filled noryl impeller, F.D.A. compliant
Bolt down Lexan diffuser has stainless wear ring for extended performance in abrasive conditions
Powered for continuous operation
Rated within the motor manufacturer’s recommended working limits
Can be operated continuously without damage
Corrosion resistant electro-coat paint is baked on
Diaphragm retains water in the casing to ensure the mechanical seal can never run dry
Excellent air handling ability - after initial priming the pump has the ability to re-prime itself
Built-in overload with automatic reset
Stainless steel shaft
Clockwise rotation when viewed from motor end
Pressure switch AS4 preset at 30-50 psi
Applications

Homes
Farms
Cottages
Booster service

Product Literature
