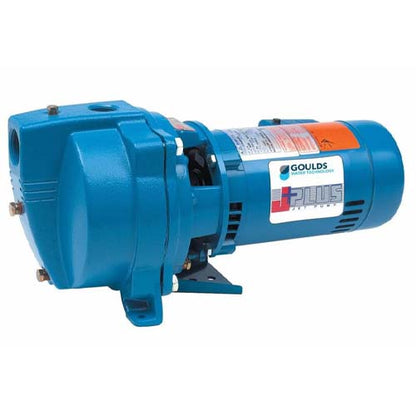

Goulds Pumps J10S Shallow Well Jet Pump (1 HP, 115/230 Volts, 1 Phase, 60hz, 1-1/4" Suction, 1" Discharge, JS+ Series)
Goulds Pumps J10S Shallow Well Jet Pump (1 HP, 115/230 Volts, 1 Phase, 60hz, 1-1/4" Suction, 1" Discharge, JS+ Series)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:J10S
Regular price
$1,107.60 USD
Regular price
$1,846.00 USD
Sale price
$1,107.60 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Goulds J10S Shallow Well Jet Pump (J10s, 1 HP, 24 Max GPM)
| Applications |
| Homes; Cottages; Booster Service |
| Features |
| One Year Factory Warranty |
| Compact: Design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter. |
| Serviceable: Back pullout design allows disassembly of pump for service without disturbing piping |
| Impeller: F.D.A. compliant, glass filled Noryl® is corrosion and abrasion resistant. |
| Diffuser (Guidevane): Diffuser has stainless wear ring for extended performance in abrasive conditions. |
| Powered for Continuous Operation: Can be operated continuously without damage. |
| Protected Mechanical Seal: Special diaphragm design retains water in the casing at all times to ensure the mechanical seal can never run dry. |
| Excellent Air Handling Ability: After initial priming the pump has the ability to re-prime itself even when air gets into the system. |
|
Tech Specs |
|
|
Brand
|
Goulds
|
|
Type
|
Shallow Well Jet Pump
|
|
Model Number
|
J10S
|
|
HP
|
1
|
|
RPM
|
3500
|
|
Voltage
|
115/230
|
|
Phase
|
Single
|
|
Hertz
|
60
|
|
Speed
|
3500 rpm
|
|
Rotation
|
Clockwise when viewed from motor
|
|
Max Temperature
|
140
|
|
Shaft
|
Stainless Steel
|
|
Notes
|
Built-in overload with automatic reset
|
|
Suction Pipe Connection (in)
|
1-1/4" NPT
|
|
Discharge Pipe Connection (in)
|
1" NPT
|
|

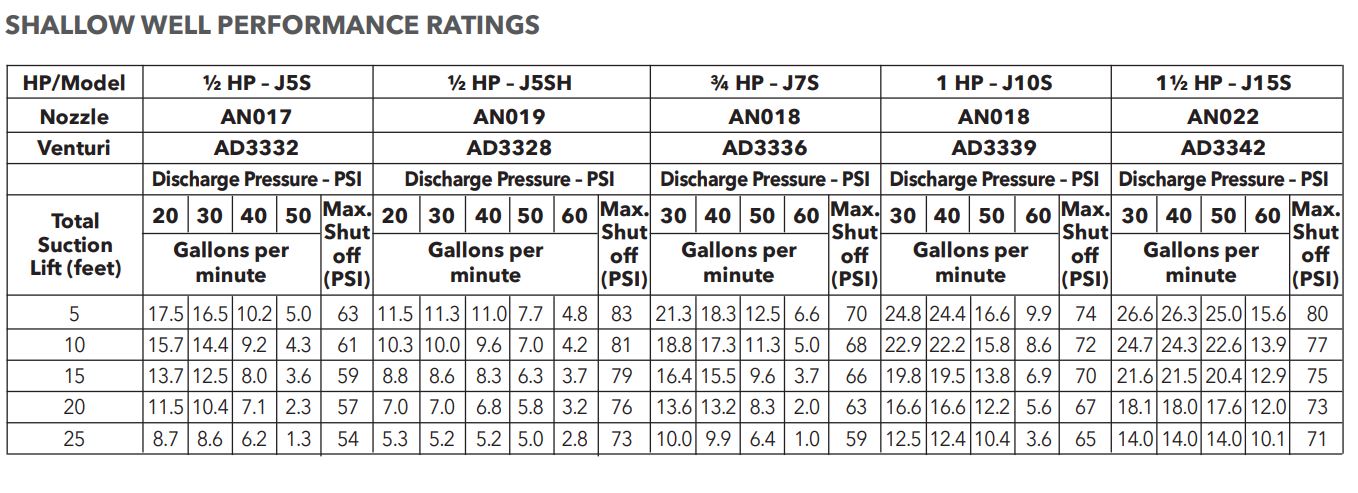

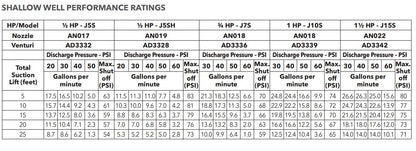

Flow at 5 ft (30 psi)
|
24.8 gpm
|
|
Flow at 10 ft (30 psi)
|
22.9 gpm
|
|
Flow at 15 ft (30 psi)
|
19.8 gpm
|
|
Flow at 20 ft (30 psi)
|
16.6 gpm
|
|
Flow at 25 ft (30 psi)
|
12.5 gpm
|
|
Maximum Shut Off Pressure
|
74 psi
|
|
Impeller Material
|
Glass filled noryl
|
|
Thermal Protection
|
Yes
|
|
Maximum Temperature
|
140°F
|
|
Pressure Switch
|
AS4 Preset (30-50 PSI)
|
|
Venturi
|
AD3339
|
|
Nozzle
|
AN018
|
|
Pump Length
|
18-3/4"
|
|
Alternative Option (If not in stock)
|
Berkeley Pump HNE-L Click Here
|
|
