U.S. Motors

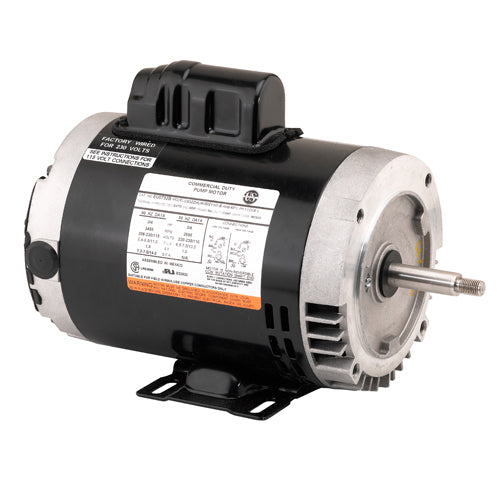

EU0754 US Motors Special Application Commercial Pump Motor (3/4 HP, 115/208-230 Voltage, 56J Frame, Single Phase, ODP, C-Face Type)

EU0754 US Motors Special Application Commercial Pump Motor (3/4 HP, 115/208-230 Voltage, 56J Frame, Single Phase, ODP, C-Face Type)

👁️ [COUNT] People are currently viewing this product.

EU0754

$576.09 USD
$0.00 USD $576.09 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

U.S. Motors EU0754, Special Application Commercial Pump Motors Type, 3/4 HP, 115/208-230 Voltage, 56J Frame, Single Phase, ODP Enclosure, C-Face Type,

Applications
For use on chiller, condensate, and other HVAC duty pumps, booster and irrigation pumps, dishwasher and part washer pumps, watering and de watering pumps, and other commercial duty pumping applications.
Features
Double Sealed Ball Bearings - Locked Drive End Bearing
50/60 Hertz Motors have 1.0 Service Factor on 50 Hertz
Shaft Threads for 56J Mount: 7/16-20 UNC-2A
208v will not be marked on DOE regulated spread-voltage motors. Refer to online data.
Reversible Rotation
Continuous Duty

Specifications

Brand
U.S. Motors
Catalog Number
EU0754
Type
Special Application Commercial Pump Motors
Series
Pump Motors
HP
3/4
Voltage
115/208-230
Frame
56J
Catalog Number
EU0754
Symbol
DS-3FMP
Phase
Single
Enclosure
ODP
Type
C-Face
SF
1.25
"C" Dim.(inches)
11.9
Ship Wt. (lbs)
29
Max Amps
8.2/4.1
Notes
25
Assembly
F1
Rotation
Reversible
Insulation
Class B
Ambient
40 C
Notes
See support documents
