U.S. Motors

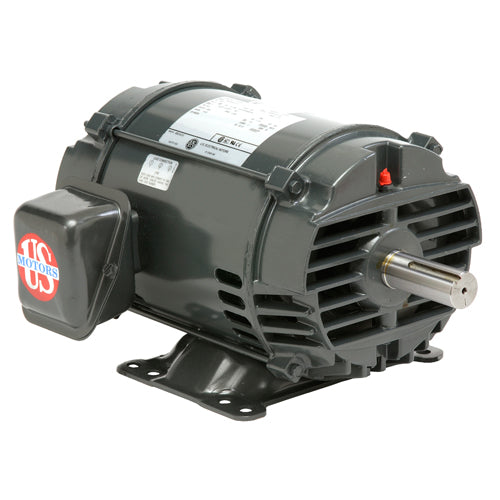

DH50S2HF U.S. Motors Dry Hydraulic Elevator Motors (50 HP, 200 Voltage, Three Phase, 1800 RPM)

DH50S2HF U.S. Motors Dry Hydraulic Elevator Motors (50 HP, 200 Voltage, Three Phase, 1800 RPM)

👁️ [COUNT] People are currently viewing this product.

DH50S2HF

$4,935.21 USD
$0.00 USD $4,935.21 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

U.S. Motors: DH50S2HF, HP: 50, RPM: 1800, Voltage: 200, Phase: Three, Frame: 324T, Full Load Amps: 133, Type: Dry Hydraulic Elevator Motor, SF: 1, C Dim. (inches): 27.3, 0: 0,
Applications
Suitable for use on elevators where dry hydraulic motors are required, usually five stories or less.
Features
NEMA and CSA Certified
1800 RPM
NEMA Design B
80 Starts Per Hour
F1 Assembly
Class F Insulation
60 Hertz
Intermittent Duty Rated For Operation in a 40C Ambient Temperature
Ball Bearing Design

Tech Specs

Brand
U.S. Motors/Emerson
U.S. Motors Model Number
DH50S2HF
HP
50
RPM
1800
Voltage
200
Phase
Three
Frame
324T
Full Load Amps
133
Type
Dry Hydraulic Elevator Motor
SF
1
C Dim. (inches)
27.3
Notes
See Product Literature
Apx. Wt. (lbs.)
420

















Support Documents (pdf)

Product Literature
