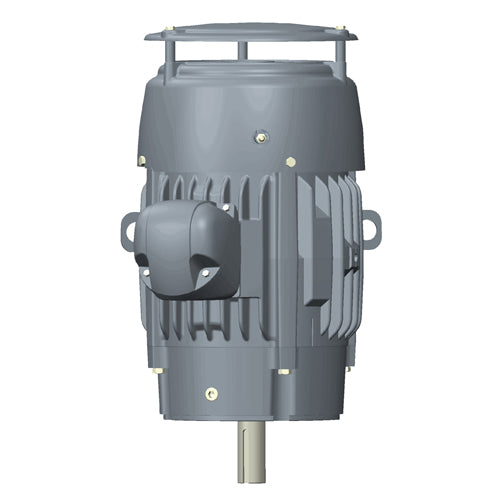

C30P2FCR U.S. Motors Vertical C-Face Motor (30 HP, 1800 RPM, 460 Voltage, 286TC Frame)

C30P2FCR U.S. Motors Vertical C-Face Motor (30 HP, 1800 RPM, 460 Voltage, 286TC Frame)

👁️ [COUNT] People are currently viewing this product.

C30P2FCR

$0.00 USD
$0.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

U.S. Motor C30P2FCR, Nema Premium Efficient Vertical C-Face Motor Type, CORRO-DUTY Series, 30 HP, 1800 RPM, 460 Voltage, 286TC Frame,

Applications
For pulp & paper, mill & chemical and any other severe duty environments found in the process industries.
Features
Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
Stainless Steel Nameplate (with "CE" Mark)
Shaft Slinger On Both Ends For IP54 Protection
Regreasable Bearings 140 Frame & Up, Lifting Provisions 180 Frame & Up
Special Balance (< 0.08 In/Sec Vibration)
Oversized Cast Iron Conduit Box - 1 Size Larger Than NEMA Standard
All Cast Iron Construction (Steel Frame On 140 Frame)
Corrosion Resistant Mill & Chemical Duty Paint
40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power
50 Hz. rated at 190/380V (140-250 Frame) or 380V (280 Frame & Larger)
Open Bearings 180-447 (Double Shielded Bearings on 140 Frame)

Specifications

Brand
U.S. Motor
Catalog Number
C30P2FCR
Type
Nema Premium Efficient Vertical C-Face Motor
Series
CORRO-DUTY
HP
30
RPM
1800
Voltage
460
Frame
286TC
NEMA Nom.Eff.
93 .6
Full Load Amps
34
Ship Wt. (lbs.)
410
Enclosure
TEFC
Phase
Three
Hz
60
Insulation
Class F
Construction
Cast Iron
Paint
Corrosion Resistant Mill & Chemical Duty
Protection
IP54
Service Factor @ 60 Hz
1.15
Hardware
Zinc Plated
