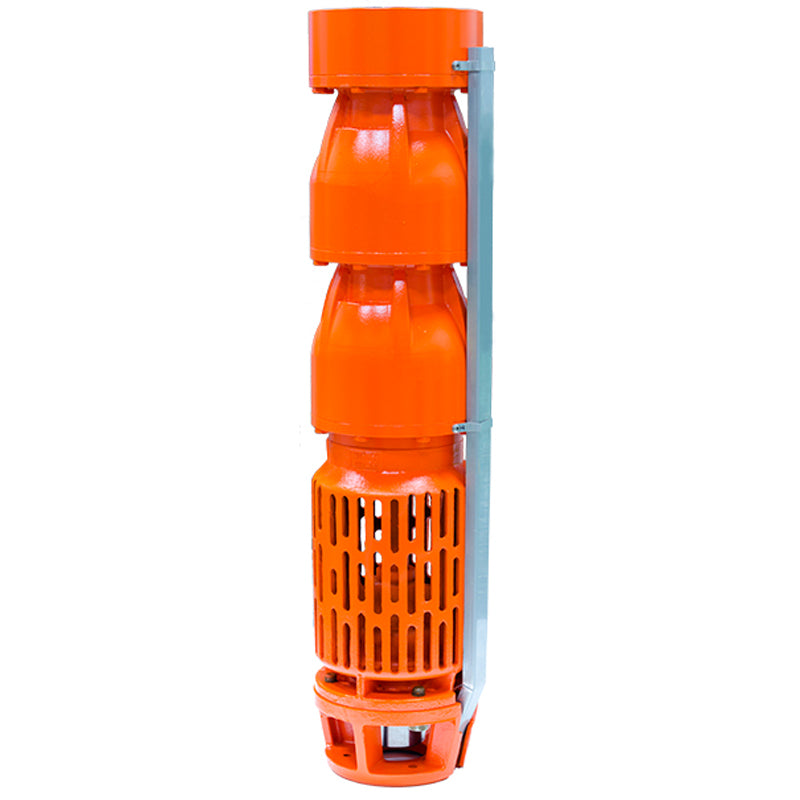

B87136 Berkeley 10" Submersible Pump End Only (175 HP, 2 Stages, 1750 GPM, 8" NPT Discharge, 10" Motor Diameter, 10TMH Series)

B87136 Berkeley 10" Submersible Pump End Only (175 HP, 2 Stages, 1750 GPM, 8" NPT Discharge, 10" Motor Diameter, 10TMH Series)

👁️ [COUNT] People are currently viewing this product.

B87136

$4,966.15 USD
$9,684.00 USD $4,966.15 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Berkeley B87136, Subturbine Pumps Type, 10TMH Series, 175 HP, 2 Stages, 1750 GPM, 8" NPT Discharge, 10" Motor Diameter,

Applications
The 10TMH pump series provides more performance, more coverage, and better materials to deliver maximum performance and longevity under the toughest and most demanding operating conditions.
Features
Discharge Ductile Iron (8), for higher strength and better wear resistance.
Sand Collar 316 Stainless Steel, for better corrosion resistance.
O-Ring Seal on the Bowls Creates a better sealing surface, and spreads the load across the flange of the bowl.
Bowls Class 30 Cast Iron, heavy-walled construction incorporates precision hydraulic design for maximum efficiency and performance. Coated internal passageways on the 10TMH series increases overall pump efficiency and performance.
Bowl Bearing Options Rubber (standard), Bronze (optional), Vesconite (optional)* Covers most application needs.
Collets 416 Stainless Steel, provides increased durability and better corrosion resistance.
Investment Cast Impellers 316 Stainless Steel High corrosion resistance, high strength, precision cast and machined for superior performance.
Suction Bracket Ductile Iron, With integrated, cast-in screen. Eliminates issues caused by collapsed or missing suction
Motor Adapters Ductile Iron, Separate adapters available to fit all 8 and 10 submersible motors, up to 250hp.

Specifications

Brand
Berkeley
Catalog Number
B87136
Type
Subturbine Pumps
Series
10TMH
Pump Model
10TMH175-1750
HP
175
Stages
2
GPM
1750
Discharge
8" NPT
Impeller
Stainless Steel
Shaft
416 SS
Motor Diameter
10"
Bowls
Cast Iron
Motor
Not Included
Notes
See Support Documents

Support Documents (pdf)
