• AVA20400C0F0X0X1 Goulds Pumps Aquavar IPC Variable Speed Controller (Variable Speed Controller , 208-230 Input Voltage, 3 Input Phase, 3R Type)
1 1

Goulds Drives & Controls

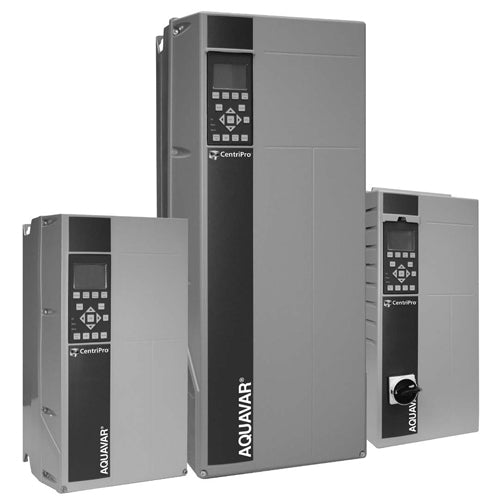

AVA20400C0F0X0X1 Goulds Pumps Aquavar IPC Variable Speed Controller (Variable Speed Controller , 208-230 Input Voltage, 3 Input Phase, 3R Type)

AVA20400C0F0X0X1 Goulds Pumps Aquavar IPC Variable Speed Controller (Variable Speed Controller , 208-230 Input Voltage, 3 Input Phase, 3R Type)

👁️ [COUNT] People are currently viewing this product.

AVA20400C0F0X0X1

$12,109.96 USD
$16,937.00 USD $12,109.96 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

AVA20400C0F0X0X1 Goulds Pumps Aquavar IPC Variable Speed Controller (Variable Speed Controller , 208-230 Input Voltage, 3 Input Phase, 3R Type)

Applications
The Aquavar IPC variable speed controller brings the latest in pump drive technology and programming. The drive and interface are designed to give you advanced capabilities that help you effectively and efficiently operate your system.
Features
Nominal HP values are for reference only. Size Aquavar by maximum output amps of the motor.
Includes: 4-20mA, 300psi transducer and 16 cable
Wide range of standard and permanent magnet motors with power up to 90 kw / 450 hp
Developed by pump experts and optimized for controlling pumps
Submersible and above ground applications
Easier start-up and programming with Start-Up Genie
Two wire multi-pump connection for faster installation
Hand on, Off, and Auto-On buttons available for easy pump operation at the keypad. No toggling between local and remote operation
Multi-pump configuration for up to four (4) pumps no need for PLC
System redundancy with multi-master control in case of drive failure
Wide range of voltage and enclosure option

Specifications

Brand
Goulds Pumps
Catalog Number
AVA20400C0F0X0X1
Type
Variable Speed Controller
Series
Aquavar IPC
Input Voltage
208-230
Input Phase
3
Type
3R
Cont. Output Amps @ 45C Ambient
115
Cont. Output Amps @ 50C Ambient
103.5
Nominal Surface Motor HP
40
Nominal Sub. Motor HP 4" / 6" & Up
30
Frame Size
C1
DV / DT Load Filter NEMA 3R
V1K130A03
Repair PN for transducer
9K712
Repair PN for transducer and 16' cable
9K755
Notes
See Support Documents

Support Documents (pdf)
