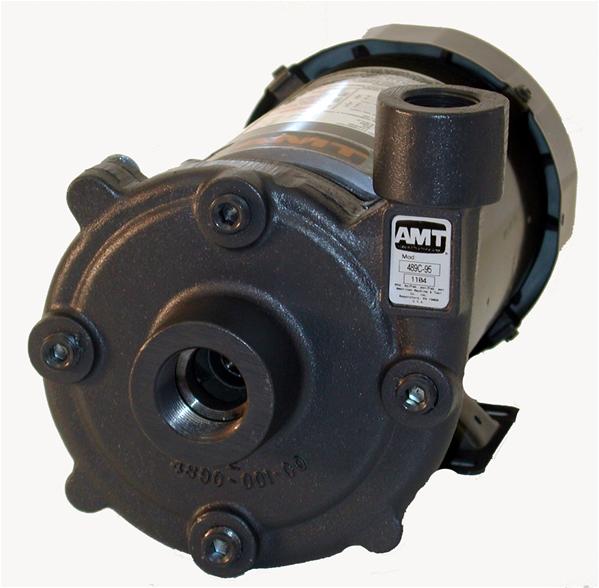

AMT Pumps 489C-95 High Head Straight Centrifugal Pump (3/4 HP, 115/230 V, Cast Iron)
AMT Pumps 489C-95 High Head Straight Centrifugal Pump (3/4 HP, 115/230 V, Cast Iron)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:489C-95
Regular price
$555.33 USD
Regular price
$833.00 USD
Sale price
$555.33 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
AMT 489C-95, High Head Straight Centrifugal Pumps, Cast Iron Series, 3/4 HP, TEFC,56J FRAME, 115/230 V, 1 PHASE, Cast Iron,Buna-N/SS,Stainless Steel IMPELLER
| Applications |
| AMT High Head End Suction Centrifugal pumps are designed for continuous-duty OEM, Industrial/Commercial and processing applications including circulation, chemical processing, liquid transfer, heating and cooling, sprinkler/fire protection systems and pressure boosting. |
| Features |
| Stainless Steel, Bronze and Cast Iron Construction |
| Buna-N or Viton Mechanical Seal and O-ring, Depending on Model |
| Optional Silicon Carbide Mechanical Seals Available |
| Stainless Steel Motor Shaft and Hardware |
| NEMA TEFC Single or Three Phase 3450 RPM Motors, Optional ODP Motors Available |
| NEMA Base Mounted Motor |
| High Efficiency Closed Stainless Steel Impeller |
| Discharge Rotates in 90 Increments |
| Maximum Working Pressure 150 PSI |
| Maximum Temperature:Viton: 200 F, Buna-N: 180 F |
| (4) Front Drain Plugs, Located 90 Apart |
Specifications | |
Brand |
AMT |
Catalog Number |
489C-95 |
Type |
High Head Straight Centrifugal Pumps |
Series |
High Head Straight Centrifugal Pumps, Cast Iron |
HP |
3/4 |
TYPE |
TEFC |
FRAME |
56J |
VAC/60 Hz |
115/230 |
PHASE |
1 |
Suction |
1-1/4" |
Discharge |
1" |
CASING |
Cast Iron |
SHAFT SEAL |
Buna-N/SS |
IMPELLER |
Stainless Steel |
SHIP WT (lbs) |
46 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
