AMT Pumps 4201-95, 1750 RPM Straight Centrifugal Pump (5 HP, 208-230/460V, 3 Phase, TEFC)
AMT Pumps 4201-95, 1750 RPM Straight Centrifugal Pump (5 HP, 208-230/460V, 3 Phase, TEFC)
SKU:4201-95
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
| Applications |
|

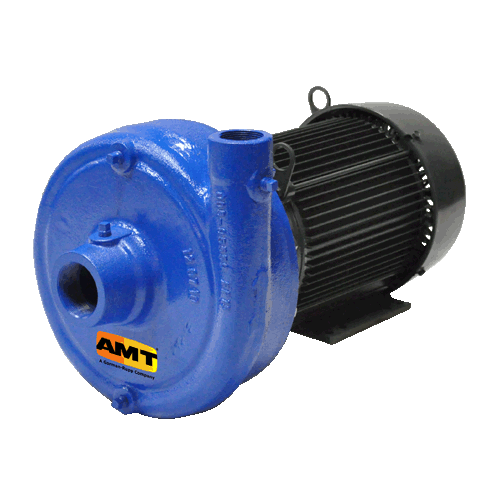

The AMT Cast Iron 1750 RPM Solids Handling End Suction Centrifugal pump delivers high efficiency performance that minimizes operation and energy costs. Built to last, each pump features a precision cast bronze impeller that is dynamically balanced to minimize vibration and maximize motor bearing life. Pullfrom-rear design simplifies maintenance without disturbing piping connection. Gauge taps at the suction and discharge ports allow for system monitoring. Maximum 1/4" diameter solids handling and optional seal flush/air relief valve is available for vertical installations. Pumps require a flooded suction and positive suction pressure. |
| Features |
| Cast Iron Construction |
| Viton Silicon Carbide/Carbon Mechanical Seal |
| Silicon Bronze Precision Cast Dynamically Balanced Impeller |
| Bronze Case Wear Ring |
| 2" x 1.5" NPT Ports |
| Pull-From-Rear Design Permits Easy Servicing Without Disturbing Piping |
| 1/4" NPT Gauge Taps on Suction & Discharge Ports for System Monitoring |
| Bronze Shaft Sleeve to Protect Motor Shaft |
| Maximum Temperature 200 F |
| Includes Seal Flush/Air Relief Valve |
| Front Drain Plugs |
| TEFC JM NEMA Frame IE2/EPAC Energy Efficient Motors |
| Pumps require a flooded suction and positive suction pressure. |
Specifications | |
Brand |
AMT |
Catalog Number |
4201-95 |
Type |
Centrifugal Pump |
HP |
5 |
PH |
3 |
Speed |
1750 RPM |
Frame (NEMA) |
182JM |
Enclosure |
TEFC |
Voltage @ 60 Hz |
208-230/460 |
Full Load Amps |
22/11 |
Suction |
2" NPT |
Discharge |
1-1/2" NPT |
Max Temperature |
200° F |
Max Solid Handling |
1/4" Diameter Solids |
Ship Wt. (Lbs.) |
215 |
Construction |
Cast Iron |
Seal |
Viton Silicon Carbide/Carbon |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
