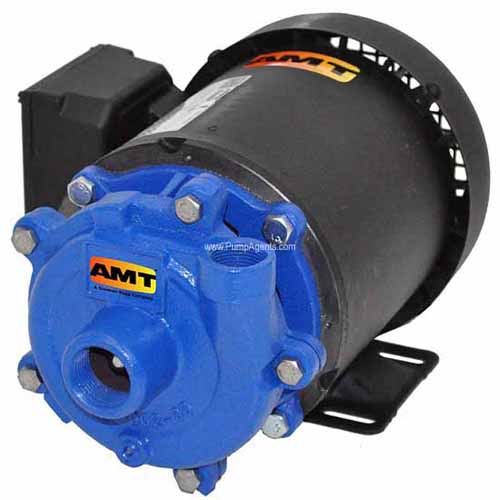

AMT Pumps 369F-95 Straight Centrifugal Pump (1 HP, 3 PH, 230/460V)
AMT Pumps 369F-95 Straight Centrifugal Pump (1 HP, 3 PH, 230/460V)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:369F-95
Regular price
$516.67 USD
Regular price
$775.00 USD
Sale price
$516.67 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
AMT 369F, Straight Centrifugal Pumps,1 HP, 3 PH, TEFC,230/460 V,
| Applications |
| AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling. |
| Features |
| Stainless Steel, Bronze and Cast Iron Construction |
| Buna-N or Viton Mechanical Seal and O-ring, Depending on Model |
| Optional Silicon Carbide Mechanical Seals Available |
| Stainless Steel Motor Shaft and Hardware |
| NEMA 56J TEFC Single or Three Phase Motors |
| NEMA Base Mounted Motor |
| Self-cleaning Impeller |
| Discharge Rotates in 90 Increments |
| Maximum Working Pressure 75 PSI |
| Maximum Temperature:Viton: 200 F, Buna-N: 180 F |
| Front Drain Plug |
Specifications | |
Brand |
AMT |
Catalog Number |
369F-95 |
Type |
Centrifugal Pumps |
Series |
Straight Centrifugal Pumps |
HP |
1 |
Phase |
3 |
Enclosure |
TEFC |
Voltage |
230/460 |
Full Load Amps |
4/2 |
Suction |
1-1/4" NPT |
Discharge |
1" NPT |
L |
12.4 [31.5] |
W |
8.8 [22.5] |
H |
7.2 [18.3] |
Ship Wt. (Lbs.) |
43 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
