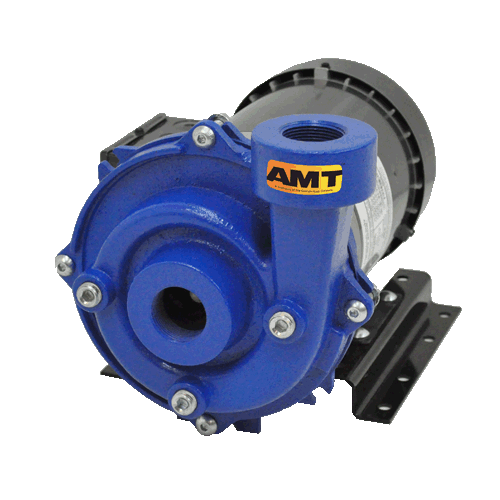

AMT Pumps 1ES10C-1P Straight Centrifugal End Suction Chemical Pump (1 HP, 1 Phase, 115-208/230)

AMT Pumps 1ES10C-1P Straight Centrifugal End Suction Chemical Pump (1 HP, 1 Phase, 115-208/230)

👁️ [COUNT] People are currently viewing this product.

1ES10C-1P

$551.33 USD
$827.00 USD $551.33 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

AMT 1ES10C-1P, Straight Centrifugal End Suction Chemical Pump,1 HP, 1 PH, 115-208/230 V, 1" NPT
Applications
AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty OEM, Industrial/Commercial and General Service applications including circulation, chemical processing, liquid transfer and cooling.
Features
Cast Iron Construction
EPDM/EPR Mechanical Seal and O-rings
303 Stainless Steel Motor Shaft
NEMA 56J TEFC Single or Three Phase Motors
NEMA Dual Cycle 50/60 Hz Base Mounted Motor
Self-cleaning Impeller
Discharge Rotates in 45 Increments
Maximum Working Pressure 125 PSI
Maximum Temperature 180 F
Front Drain Plugs
QSPQuick Ship Pump for Many Models

Specifications

Brand
AMT
Catalog Number
1ES10C-1P
Type
Chemical Pumps
Series
Straight Centrifugal End Suction Chemical Pump
Curve
C
HP
1
Phase
1
Enclosure
TEFC
Voltage
115-208/230
Full Load Amps
12/6
Suction
1" NPT
Discharge
1" NPT
Length
14.6"
Width
10.1"
Height
9.9"
Ship Wt. (Lbs.)
53
Warranty
1 Year
Notes
See Support Documents
