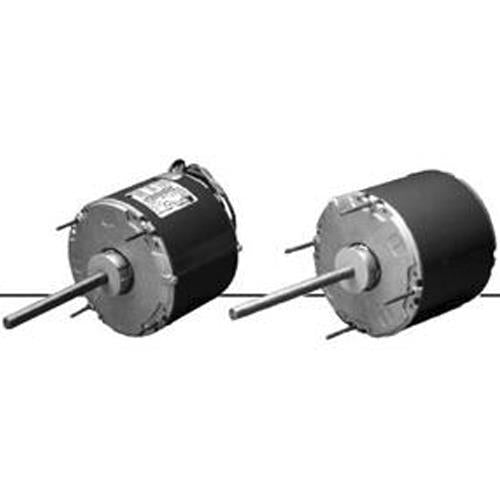

8068 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1 HP, 200 Volts, 1080 RPM)
8068 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1 HP, 200 Volts, 1080 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:8068
Regular price
$654.95 USD
Regular price
$0.00 USD
Sale price
$654.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
US Motors Emerson 8068, HP: 1, RPM: 1080, Volts: 200, Diameter: 5.6", Enclosure: Open Dripproof, Air Over, For Cooling Fans
| Applications | |
| Designed to meet manufacturer's requirements for condenser cooling fans. | |
| Features | |
| High Efficiency Economizer Rated (except as noted) | Green Ground Lead |
| 60 Hz | Reversible Rotation |
| Capacitor Mounting Holes in Frame Band | Class B Insulation |
| Continuous Duty, Air Over | 30" Leads |
| Water Slinger | Double Flats on Shaft |
| Designed for use with 370V Capacitors | Enclosed Endshield at Shaft End |
| Automatic Reset Thermal Overload Protector | Sleeve Bearings have All Angle Thrust System |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
8068 |
HP |
1 |
RPM |
1080 |
Volts |
200 |
Bearings |
Ball |
Amps |
5.9 |
Cap. MFD |
30 |
Shaft N |
4.5 |
Apx. Wt. (lb) |
25 |
Shell XI |
6.1 |
Total C |
11.1 |
Diameter |
5.6" |
Enclosure |
Open Dripproof, Air Over |
Mount |
Stud - Shaft Up or Horizontal |
Notes |
Without Capacitor |
Type |
Permanent Split Capacitor Condenser Fan Motor |
OEM Replacement |
Lennox |
Support Documents (pdf) | ||||
| Product Literature | ||||
