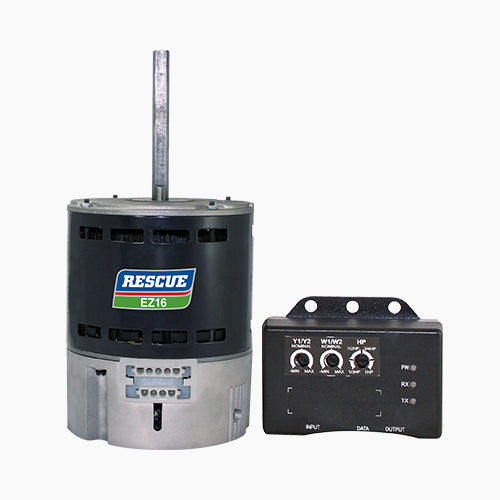

5860 US Motor Direct Drive Blower (1HP, OPAO, 1075 RPM, 115/208-230V)
5860 US Motor Direct Drive Blower (1HP, OPAO, 1075 RPM, 115/208-230V)
SKU:5860
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Model_Number: M055AYE3643015B
PRODUCT NAME: 1 HP - OPAO - 1075
PHASETYPE: 1_BRUSHLESS PERMANEN
MOTOR ENCLOSURE: OPAO
HORSEPOWER: 1
HORSEPOWER 2: 0.33
KILOWATTS: 7.7
POLES: 10
NUMBER SPEEDS: 1
RPM: 1075
HERTZ: 60
HERTZ 2: 50
VOLTS PRIMARY: 115/208-230 V
VOLTS : 115
VOLTS 2: 208
VOLTS 3: 230
FRME : 48
SHAFT CODE: Y
STACK: 1.875
MOTOR TYPE: FHP
OPPOSITE END BEARING: 6201
SHAFT END BEARING: 6201
AMBIENT: 40
ROTATION: REVERSIBLE
SHIPPING WEIGHT: 14
THERMAL PROTECTION: ELECTRONICALLY PROTECTED MOTOR
BREAKDOWN TORQUE UOM: OZFT
LOCKED ROTOR TORQUE UOM: OZFT
INSULATION CLASS: B
FULL LOAD AMPS PRIMARY: 12.1/7.6-7.1&12.1/7.6-7.1
