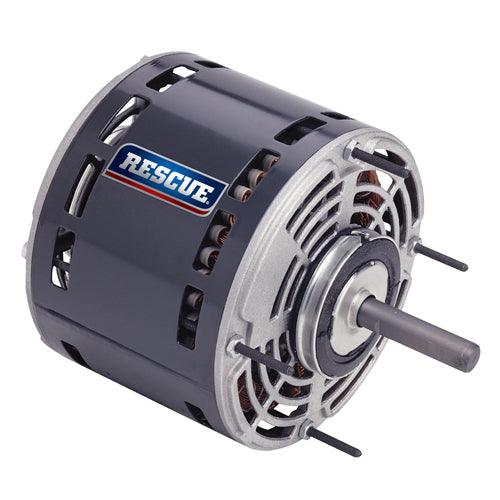

5460 U.S. Motors RESCUE Direct Drive Fan and Blower Motor, Open Air Over (1/6-1/2 HP, 115 Volts)

5460 U.S. Motors RESCUE Direct Drive Fan and Blower Motor, Open Air Over (1/6-1/2 HP, 115 Volts)

[COUNT] shoppers are looking at this right now

5460

$154.88 USD
$0.00 USD $154.88 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson 5460, HP: 1/6-1/2, Max RPM: 1075, Volts: 115, Enclosure: Open, Air Over, Diameter: 5.6", HVAC Motor, Rheem Replacement
Applications
Commercial and Residential Air Handlers and Furnaces. Can replace a range of horsepower applications and a variety of mounting styles.
Features
Extended Mounting Studs Includes Side Shell Holes For Rheem Units
Designed For Use With 370v Capacitors Reversible Rotation
Class B Insulation Automatic Reset Thermal Overload Protector
36" Leads 2.5" Dia. Hub Rings Included
High Efficiency Design Continuous Duty, Air Over

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
5460
HP
1/6-1/2
Max RPM
1075
Volts
115
Cool Speed Tap
See Product Literature
Heat Speed
See Product Literature
Bearings
Slv
Cap MFD.
10
Apx. Wt. (lb)
15
Amps
7.3
Shaft N
5
Base XD
5.4
Shell XI
4.8
Total C
9.8
Enclosure
Open, Air Over
Diameter
5.6"
Type
Direct Drive Fan & Blower Motor
Notes
RESCUE Permanent Split Capacitor Motor

Support Documents (pdf)

Product Literature
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
