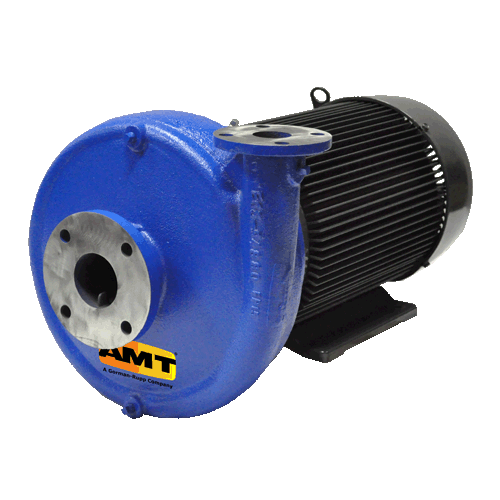

4272-95 AMT 1750 RPM Straight Centrifugal Pump (15 HP, 254JM Frame, TEFC Enclosure, 208-230/460 Voltage @ 60 Hz)
4272-95 AMT 1750 RPM Straight Centrifugal Pump (15 HP, 254JM Frame, TEFC Enclosure, 208-230/460 Voltage @ 60 Hz)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:4272-95
Regular price
$4,706.00 USD
Regular price
$7,059.00 USD
Sale price
$4,706.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
AMT 4272-95, 1750 RPM Straight Centrifugal Pumps Type, 15 HP, 254JM Frame, TEFC Enclosure, 208-230/460 Voltage @ 60 Hz,
| Applications | |
| The AMT Cast Iron 1750 RPM Solids Handling End Suction Centrifugal pump delivers performance that minimizes operation and energy costs. Built to last, each pump features a precision cast bronze impeller that is dynamically balanced to minimize vibration and maximize motor bearing life. Pull-from-rear design simplifies maintenance without disturbing piping connection. Gauge taps at the suction and discharge ports allow for system monitoring. Maximum 1/4" diameter solids handling and optional seal flush/air relief valve is available for vertical installations. Pumps require a flooded suction and positive suction pressure. | |
| Features | |
| Cast Iron Construction | |
| Silicon Bronze Precision Cast Dynamically Balanced Impeller | |
| Bronze Case Wear Ring | |
| 3" x 2" 125 Lb. 4-Bolt Flanged Ports | |
| Pull-From-Rear Design Permits Easy Servicing Without Disturbing Piping | |
| 1/4" NPT Gauge Taps on Suction & Discharge Ports For System Monitoring | |
| Bronze Shaft Sleeve to Protect Motor Shaft | |
| Includes Seal Flush/Air Relief Valve | |
| Front Drain Plugs | |
| EFC JM NEMA Frame IE2/EPAC Energy Efficient Motors | |
| aximum Temperature 200 F | |
Specifications | |
Brand |
AMT |
Catalog Number |
4272-95 |
Type |
1750 RPM Straight Centrifugal Pumps |
Series |
Straight Centrifugal Pumps |
HP |
15 |
Frame |
254JM |
Enclosure |
TEFC |
Voltage @ 60 Hz |
208-230/460 |
Full Load Amps |
41/19 |
Discharge |
2" |
Construction |
Cast Iron |
Seal |
Viton Silicon Carbide/Carbon |
Weight |
460 |
