Bell & Gossett

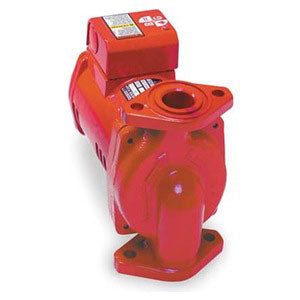

1BL036 Bell & Gossett PL-75 Booster Pump, Permanently Lubricated (1/6HP, 1 Phase, 230 Volts, Cast Iron , 10 GPM @ 15')

1BL036 Bell & Gossett PL-75 Booster Pump, Permanently Lubricated (1/6HP, 1 Phase, 230 Volts, Cast Iron , 10 GPM @ 15')

👁️ [COUNT] People are currently viewing this product.

1BL036

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Bell & Gossett 1BL036, PL-75 , PL Series , 1/6 HP, 1 Phase, 230 Volts, 150 Max PSI, 225 F Max Operating Temp., Cast Iron , 10 GPM @ 15', B&G Hot Water Circulator Pump

Applications
The Series PL close coupled booster pumps are specifically designed for quiet operation in hydronic, radiant and geothermal heating and cooling systems. These inline permanently lubricated pumps are available in cast iron or lead-free bronze body construction.
Features
B&Gs powerful, dry-motor design delivers exceptional performance
25% more efficient than competition
Precision-machined and balanced alloy steel rotor for superior performance.
Solid "Stiff-Shaft" design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses.
XL-11 Precision-Crafted Bearing System
Permanently oil lubricated
Completely maintenance free
Double sided stainless steel neck ring for optimum efficiency
Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation
Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions

Tech Specs

Brand
Bell & Gossett
Model Number
1BL036
Model Number
PL-75
Type
Circulator Pump, Close Coupled Dry Rotor
B&G Series
PL Series
HP
1/6
Phase
1
Volts
230
F.L. Amps
1.1
RPM
3400
Speeds
1
Max PSI
150
Max Operating Temp.
225 F
Pump Body
Cast Iron
GPM @ 5'
56
GPM @ 10'
40
GPM @ 15'
10
GPM @ 20'
-
GPM @ 25'
-
GPM @ 30'
-
GPM @ 35'
-
GPM @ 40'
-
Face Plate
Stainless Steel
Impeller
30% Glass Filled Noryl
Shaft
Carbon Steel
Shaft Sleeve
Stainless Steel
Seal
Mechanical, Carbon on Silicon Carbide
Bearings
Permanently Lubricated
Motor Type
ODP
Elastomers
EPDM
CONNECTION
2
Shipping Weight lbs.
19
Pump Curve and Notes
SEE PL Pump Literature

Support Documents (pdf)

PL Pump Literature
