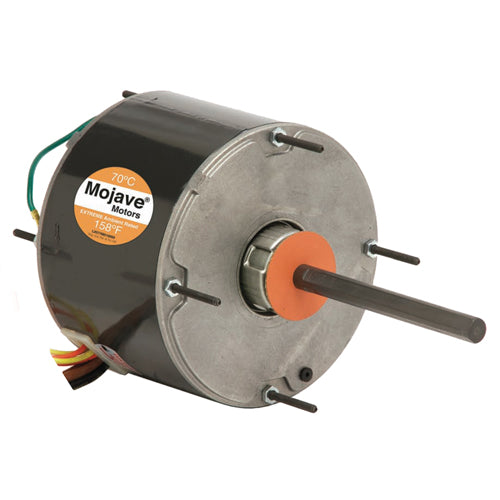

1870H U.S. Motors Perm. Split Capacitor MOJAVE Series Condenser Fan Motor (1/2 HP, 208-231 Volts, 825 RPM)
1870H U.S. Motors Perm. Split Capacitor MOJAVE Series Condenser Fan Motor (1/2 HP, 208-231 Volts, 825 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:1870H
Regular price
$220.60 USD
Regular price
$0.00 USD
Sale price
$220.60 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
US Motors Emerson 1870H, HP: 1/2, RPM: 825, Volts: 208-231, Diameter: 5.6", Enclosure: TEAO, extreme temperature locations
| Applications | |
| Residential and commercial condensing unit fan motors in extreme temperature locations. | |
| Features | |
| 158F (70C) Ambient Design | Hubless Lead End |
| Ball Bearings Have All Angle Thrust System | Drain Holes Both Ends |
| Class F Insulation | Reversible Rotation |
| Designed for use with 370V Capacitors | Automatic Reset Thermal Overload Protector |
| Extended Studs | Continuous Duty |
| 48" Leads | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
1870H |
HP |
1/2 |
RPM |
825 |
Volts |
208-231 |
Bearings |
Ball |
Amps |
3.3 |
Cap. MFD |
10 |
Shaft N |
6 |
Apx. Wt. (lb) |
17 |
Shell XI |
6.1 |
Total C |
12.4 |
Diameter |
5.6" |
Enclosure |
TEAO |
Mount |
Stud - All Angle |
Notes |
Without Capacitor, Extreme High Ambient Design |
Type |
MOJAVE Series Condenser Fan Motor |
Support Documents (pdf) | ||||
| Product Literature | ||||
