Berkeley Pumps

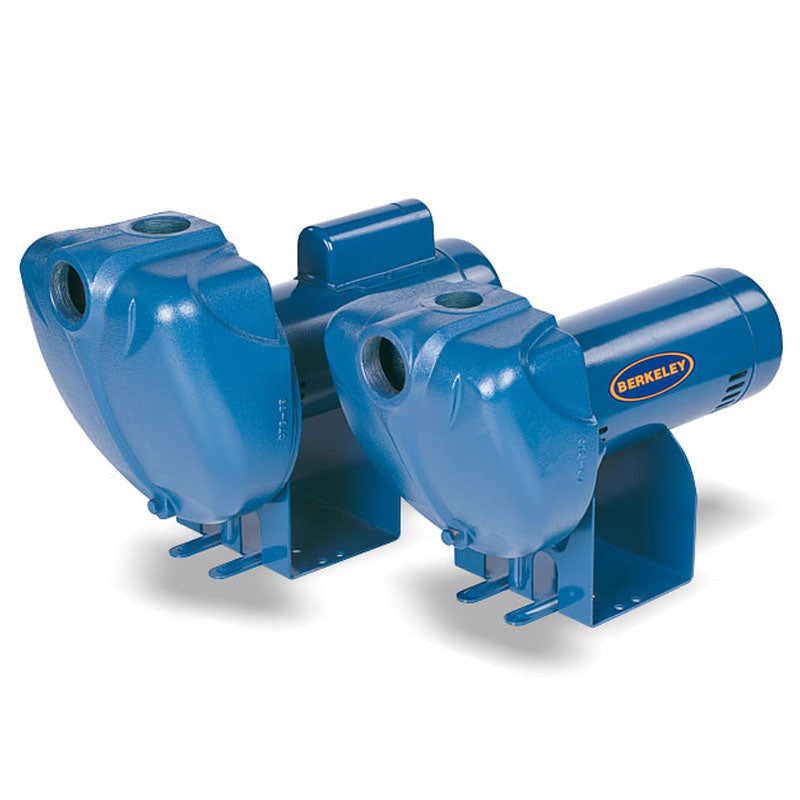

15LTHH Berkeley Self-Priming Centrifugal Pumps (1-1/2 HP, 1 Phase, 208-230/460 Voltage, 1-1/2" Discharge, LTHH Series)
15LTHH Berkeley Self-Priming Centrifugal Pumps (1-1/2 HP, 1 Phase, 208-230/460 Voltage, 1-1/2" Discharge, LTHH Series)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:15LTHH
Regular price
$913.46 USD
Regular price
$1,875.00 USD
Sale price
$913.46 USD
Shipping calculated at checkout.
Quantity
View price in cart
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
Berkeley 15LTHH, Self-Priming Centrifugal Pumps Type, LTHH Series, 1-1/2 HP, 1 Phase, 208-230/460 Voltage, 1-1/2" Discharge,
| Applications |
| The LTHH Series of cast iron sprinkler pumps offer superior un-matched performance. Available in 1 HP through 2-1/2 HP models. These pumps offer "single body fill" priming to 25 foot lifts, in less than 5 minutes.LTHH models exceed the strict safety requirements of Underwriters Laboratory UL778, and CSA, required by many state and local codes.The LTHH models are completely interchangeable with the original BERKELEY LTH Series models, saving costly plumbing changes. APPLICATIONS:Residential irrigation pumpcan be safely operated by timer or otherautomatic device Contractorsfor dewatering excavation, water transfer and supply Agriculture...seed bed and plot irrigation, stock watering Industrial...sump drainage, marine pumping, liquid transfer and supply operations. |
| Features |
| Rugged Construction: Close-grained cast iron body, specially treated for corrosion resistance. |
| High Head Models deliver up to 145' of head with capacities to 95 GPM |
| Easy Serviceability - Normal wearing parts are easily accessible for service and replacement without disturbing piping or mounting |
| Motor Windings use superior insulation materials to protect against excessive moisture and contaminants. Ensures prolonged motor life |
| Balanced Rotor is die cast under high pressures for uniform performance and greater efficiency |
| Drain Port provided for easy serviceability |
|
Specifications |
|
|
Brand
|
Berkeley
|
|
Catalog Number
|
15LTHH
|
|
Type
|
Self-Priming Centrifugal Pumps
|
|
Series
|
LTHH
|
|
HP
|
1-1/2
|
|
Phase
|
1
|
|
Voltage
|
208-230/460
|
|
Suction
|
2"
|
|
Discharge
|
1-1/2"
|
|
Body and Seal Plate
|
Close-grained cast iron
|
|
Impeller
|
Noryl
|
|
Diffuser
|
Reinforced polypropylene
|
|
Base
|
Steel, 10 gauge
|
|
Motor
|
2-compartment
|
|
Shaft
|
One-piece threaded 300 grade stainless steel
|
|
Max GPM
|
95
|
|
Max Head
|
up to 145'
|
|
Max. Operating Pressure
|
100 PSI
|
