WEG

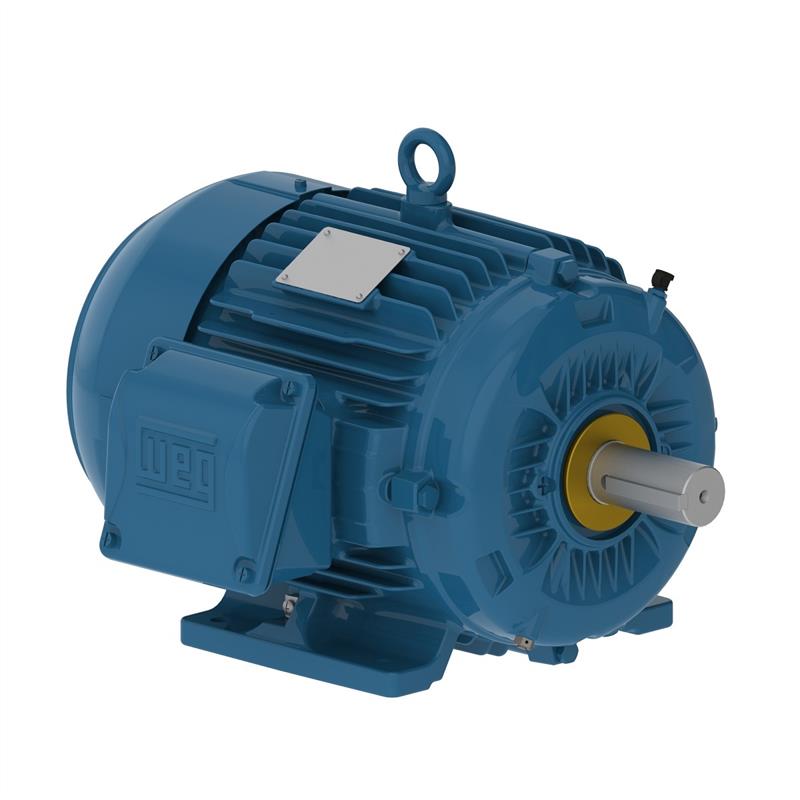

15018ST3HIERB445T-W2 WEG Motor (150 HP, 1800 RPM, 3 Phase, 444/5T Frame, TEFC Enclosure, 575 Voltage)

15018ST3HIERB445T-W2 WEG Motor (150 HP, 1800 RPM, 3 Phase, 444/5T Frame, TEFC Enclosure, 575 Voltage)

👁️ [COUNT] People are currently viewing this product.

15018ST3HIERB445T-W2

$16,542.43 USD
$18,587.00 USD $16,542.43 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

WEG 15018ST3HIERB445T-W2, 150 HP, 110 KW, 1800 RPM, 3 Phase, 444/5T Frame, TEFC Enclosure, 575 Voltage

Applications
WEG's IEEE841 motors are specially suited for Pulp & Paper mills, Steel mills, ical Plants and diverse demanding applications requiring severe duty long life motors. WEG's W22 cast iron platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise extending the life of the motor.
Features
Class F insulation (Impregnation Resin and magnet wire are class H)
F1 Mounted (F2 convertible). Frames 447T and up can easily be F2 converted by simply rotating the terminal box adapter
Stainless Steel Nameplate - Laser etched with high contrast background
All frames with regreasable ball bearings

Specifications

Brand
WEG
Catalog Number
15018ST3HIERB445T-W2
Type
Motors
HP
150
KW
110
RPM
1800
Phase
3
C Dimension
44.95
Service Factor
1.15
Frame
444/5T
Enclosure
TEFC
Full Load Amps
136
Mount
Foot Mount
Voltage
575
Warranty
1 Year

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
View full details
