U.S. Motors

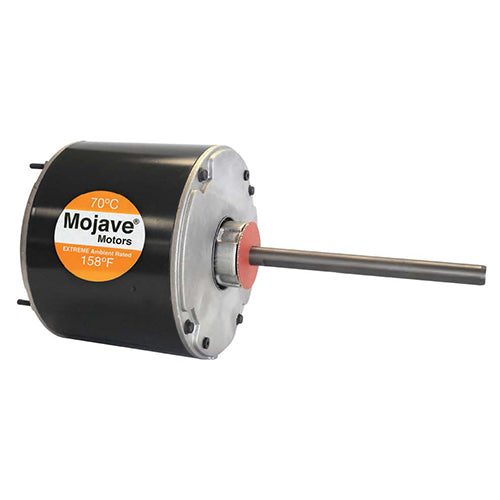

1099H Nidec US Motor MOJAVE® Permanent Split Capacitor Motor (.75 HP, Enclosed, 1060 RPM, 1 Speed, 60 Hz, 575V)
1099H Nidec US Motor MOJAVE® Permanent Split Capacitor Motor (.75 HP, Enclosed, 1060 RPM, 1 Speed, 60 Hz, 575V)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:1099H
Regular price
$0.00 USD
Regular price
$0.00 USD
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
1099H Nidec US Motor MOJAVE® Permanent Split Capacitor Motor (.75 HP, Enclosed, 1060 RPM, 1 Speed, 60 Hz, 575V)
MOJAVE® Permanent Split Capacitor Motor
High Ambient Condenser Fan
5.6" Dia. Totally Enclosed Air Over
70°C Ambient Design
All Angle Stud Mount
Model_Number
K055CMT1637012B
PRODUCT NAME
.75 HP - ENCLOSED - 1060
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
ENCLOSED
HORSEPOWER
.75
POLES
6
NUMBER SPEEDS
1
RPM
1060
HERTZ
60
VOLTS PRIMARY
575 V
KILOWATTS
0.6
VOLTS
575
STATOR DIAMETER
5.5
STACK
3
MOTOR TYPE
FHP
OPPOSITE END BEARING
6203
SHAFT END BEARING
6203
ROTATION
CCW LEAD END REV
RUNCAPMFD
12.5
RUNCAPVOLTS
370
SHIPPING WEIGHT
18
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
70.14
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
18.35
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
2.88
