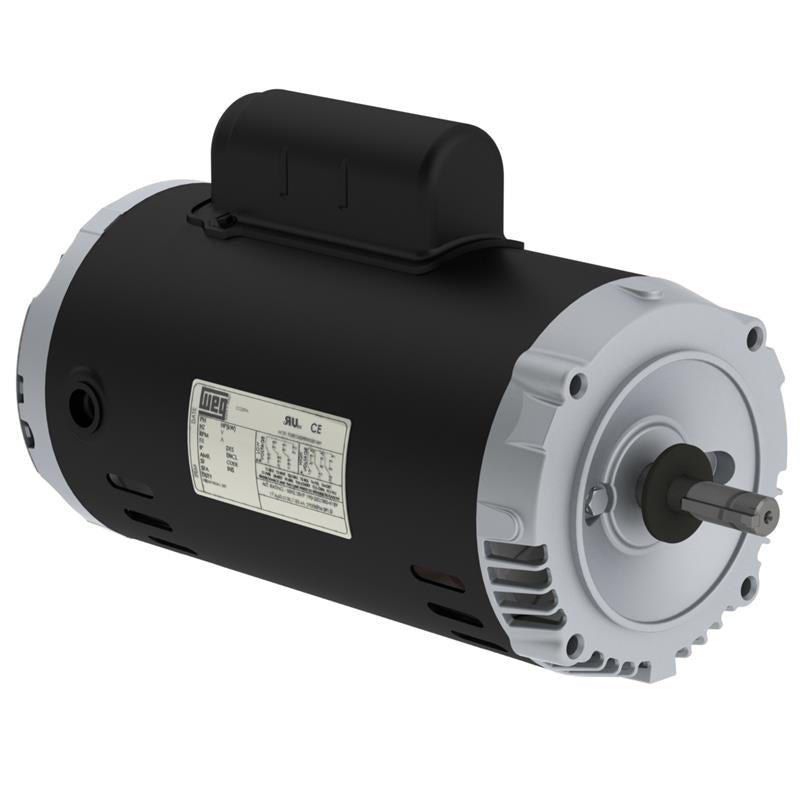

00336OS1DJPR56C-S WEG Jet Pump Motor (3 HP, 3600 RPM, ODP Enclosure, Single Phase, 230 Voltage)

00336OS1DJPR56C-S WEG Jet Pump Motor (3 HP, 3600 RPM, ODP Enclosure, Single Phase, 230 Voltage)

👁️ [COUNT] People are currently viewing this product.

00336OS1DJPR56C-S

$428.98 USD
$482.00 USD $428.98 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

WEG 00336OS1DJPR56C-S, Jet Pump Motor Type, 3 HP, 3600 RPM, ODP Enclosure, Single Phase, 230 Voltage,

Applications
These versatile motors have the torque and durability for the toughest commercial applications, yet are also economical choices for residential applications. Available with or without base and in J and C configurations
Features
Insulation class B
Sealed ball bearings (Drive end)
NEMA Service factor

Specifications

Brand
WEG
Catalog Number
00336OS1DJPR56C-S
Type
Jet Pump Motor
HP
3
RPM
3600
Enclosure
ODP
Phase
Single
Voltage
230
Frame
56C
Approx. Weight (lbs)
45
Service Factor
1 .15
FL Amps @ High
13 .2
FL Eff (%)
77 .1
C Dimension (in)
13 .465
Mounting
Footless
Frame Material
Rolled Steel
Hz
60
Mounting
F1

Support Documents (pdf)
