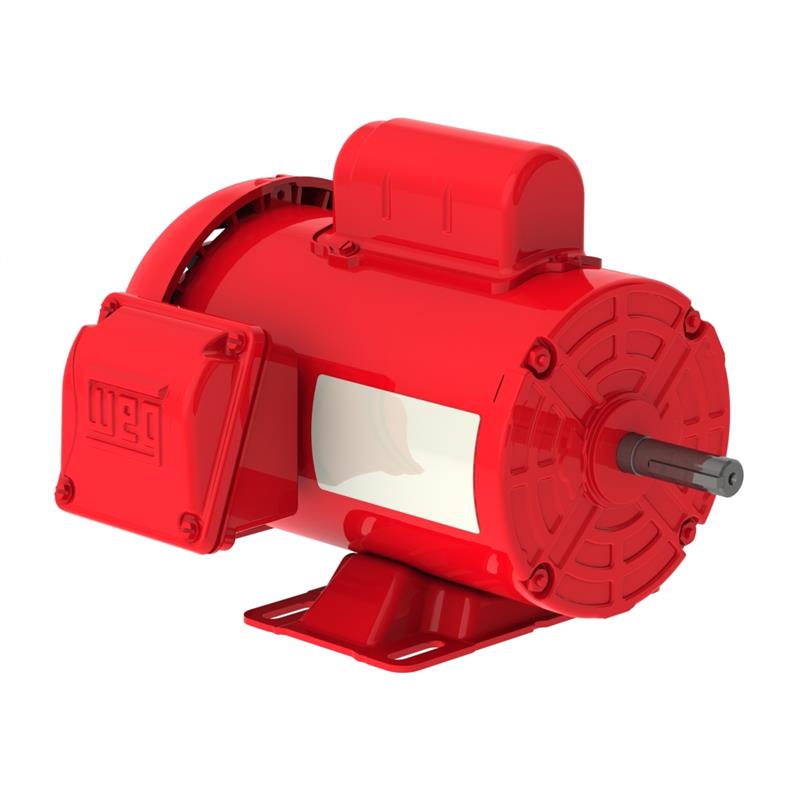

00236ES1BOL56-S WEG General Purpose Motor (2 HP, 3600 RPM, 1 Phase, 56H Frame, TEFC, 115/208-230 Voltage, Foot Mount)

00236ES1BOL56-S WEG General Purpose Motor (2 HP, 3600 RPM, 1 Phase, 56H Frame, TEFC, 115/208-230 Voltage, Foot Mount)

👁️ [COUNT] People are currently viewing this product.

00236ES1BOL56-S

$0.00 USD
$592.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

WEG 00236ES1BOL56-S, General Purpose Motor, 2 HP, 3600 RPM, 1 Phase, 56H Frame, TEFC, 115/208-230 Voltage, Foot Mount
Applications
High Starting Torque makes these motors ideal for a wide range of applications.
Features
High Starting Torque
Ball Bearings
NPT Threaded Holes in Terminal Box
Class F insulation
F1 Mounted
V-Ring Seals

Specifications

Brand
WEG
Catalog Number
00236ES1BOL56-S
Type
General Purpose Motor
HP
2
RPM
3600
Phase
1
Frame
56H
Service Factor
1.15
Enclosure
TEFC
Voltage
115/208-230
Motor Mount
Foot Mount
Full Load Efficiency
77
Full Load AMPS
8.7
"C" Dimension
14.295
Warranty
1 Year
