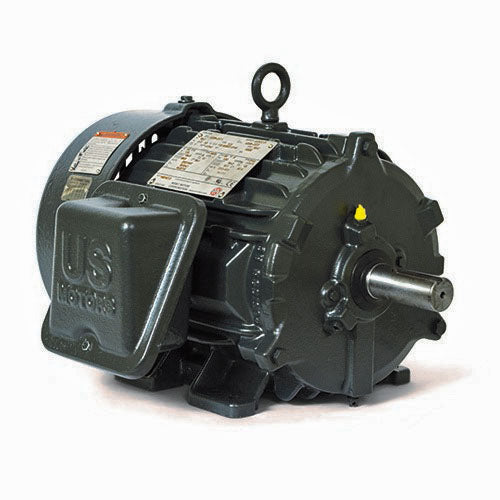

CD10P2G U.S. Motors General Purpose World Motor CORRO-Duty Motor (10 HP, 1800 RPM, 575 Voltage, 215T Frame, 3 Phase, TEFC)

CD10P2G U.S. Motors General Purpose World Motor CORRO-Duty Motor (10 HP, 1800 RPM, 575 Voltage, 215T Frame, 3 Phase, TEFC)

CD10P2G

$1,052.95 USD
$1,052.95 USD
Sale Sold out
Shipping calculated at checkout.

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

 More payment options
U.S. Motors CD10P2G, World Motor CORRO-DUTY , 10 HP, 1800 RPM, 575 Voltage, 215T Frame, 3 Phase, TEFC Enclosure,

Applications
For pulp & paper, mill & chemical and any other severe duty environments found in the process industries.
Features
Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
All Cast Iron Construction
Corrosion Resistant Mill & Chemical Duty Paint
Stainless Steel Nameplate & Zinc Plated Hardware
Dual Bearing Seals On Pulley End For IP55 Protection
NEMA Design B Performance On 60 Hz Sine Wave Power
Regreasable Open Bearings
Lifting Provisions, Epoxy Coated Rotor
Field Convertible To F2 Mounting
Brass Breather Condensation Drains
Oversized Conduit Box - 1 Size Larger Than NEMA Standard

Specifications

Brand
U.S. Motors
Catalog Number
CD10P2G
Type
General Purpose Motor
Series
World Motor CORRO-DUTY
HP
10
RPM
1800
Voltage
575
Frame
215T
SF
1.15
"C" Dim.(inches)
19.7
Ship Wt. (lbs)
180
Full LoadEff.
91.7
Phase
3
Enclosure
TEFC
Symbol
DS-3CEW
Type
NEMA Premium Efficient
Notes
See Support Documents
