U.S. Motors

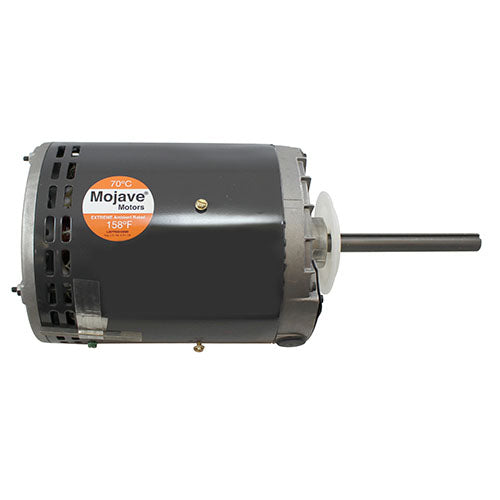

1817H U.S. Motors Commercial Condensor Fan Motor (3/4 HP, 1140 RPM, 208-230/460 Voltage, Three Phase)
1817H U.S. Motors Commercial Condensor Fan Motor (3/4 HP, 1140 RPM, 208-230/460 Voltage, Three Phase)
SKU:1817H
Regular price
$351.65 USD
Regular price
Sale price
$351.65 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
Couldn't load pickup availability
U.S. Motors 1817H, Commercial Condenser Fan Motors, Air Over Type, 3/4 HP, 1140 RPM, 208-230/460 Voltage, Three Phase,
Applications | |
Designed to meet manufacturer's requirements for condenser cooling fans in commercial air conditioning applications where 3 phase power id required. | |
Features | |
158 F (70 C) Ambient Design |
Specifications | |
Brand |
U.S. Motors |
Catalog Number |
1817H |
Type |
Commercial Condenser Fan Motors, Air Over |
Series |
MOJAVE Series |
HP |
3/4 |
RPM |
1140 |
Voltage |
208-230/460 |
Phase |
Three |
NEMA Frame |
56Z |
AMPS |
2.8/1.4 |
Shaft N |
6 |
Total C |
15.3 |
Shaft Dia. |
0.625 |
Enclosure |
ODP |
Ship Weight (lbs) |
31.5 |
Additional |
Belly B and Mount, Flat and Keyway on Shaft |
Symbol |
DS-3HAC |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
