U.S. Motors

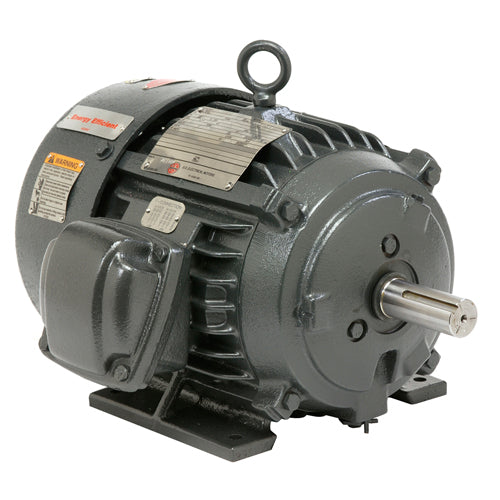

YC25P1BS U.S. Motors Corro Duty Hazardous Location Motor (25 HP, 230/460 Voltage, Three Phase, 3600 RPM)
YC25P1BS U.S. Motors Corro Duty Hazardous Location Motor (25 HP, 230/460 Voltage, Three Phase, 3600 RPM)
SKU:YC25P1BS
Regular price
$3,934.04 USD
Regular price
Sale price
$3,934.04 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
U.S. Motors: YC25P1BS, HP: 25, RPM: 3600, Voltage: 230/460, Phase: Three, Frame: 284TS, Full Load Amps: 58/29.1, Type: Corro Duty Hazardous Location Motor, Enclosure: TEFC, C Dim (inches): 26.3,
| Applications | |
| For pumps, fans, compressors, conveyors and tools located in hazardous locations as defined by Class and Group. | |
| Features | |
| UL Listed & CSA Certified | Sealed Bearings 56-140, Shielded 180-360, Open 400-440 Frames |
| All Cast Iron Construction (140 Frame Has Steel Base) | Class F Insulation, Listed For Ambients -25C To +40C |
| Corrosion Resistant Mill & Chemical Duty Paint | Brass Breather Plug |
| Stainless Steel Nameplate & Zinc Plated Hardware | Suitable For Inverter Use Per Policy Statement In Introduction, 2:1 CT(See Page vii) |
| Shaft Slinger On Pulley End For IP54 Protection | Class I (Group D), T2B Temperature Code |
| Cast Iron Inner Bearing Caps (180 Frame & Larger) | 1.15 Service Factor On 60 Hertz Sinewave Power |
| 40C Ambient, NEMA Design B Performance On 60 Hz Sine Wave Power | |
| Regreasable Bearings 180 Frame & Up, Lifting Provisions 180 Frame & Up | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
U.S. Motors Model Number |
YC25P1BS |
HP |
25 |
RPM |
3600 |
Voltage |
230/460 |
Phase |
Three |
Frame |
284TS |
Full Load Eff. |
91.7 |
Full Load Amps |
58/29.1 |
Type |
Corro Duty Hazardous Location Motor |
Enclosure |
TEFC |
C Dim (inches) |
26.3 |
Class, Group, Temp Code |
Class I, Group D, Temp Code T2B |
Motor Notes |
Single Label |
Apx. Wt. (lbs.) |
350 |
Support Documents (pdf) | ||||
| Product Literature | ||||
