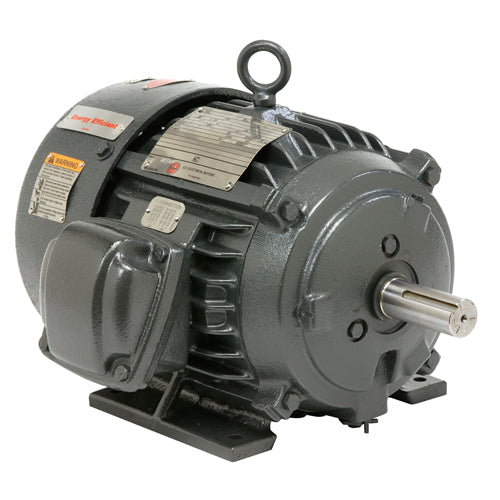

YC20P2B U.S. Motors Corro Duty Hazardous Location Motor (20 HP, 230/460 Voltage, Three Phase, 1800 RPM)
YC20P2B U.S. Motors Corro Duty Hazardous Location Motor (20 HP, 230/460 Voltage, Three Phase, 1800 RPM)
SKU:YC20P2B
Regular price
$2,933.11 USD
Regular price
Sale price
$2,933.11 USD
Unit price
/
per
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
U.S. Motors: YC20P2B, HP: 20, RPM: 1800, Voltage: 230/460, Phase: Three, Frame: 256T, Full Load Amps: 48/23.8, Type: Corro Duty Hazardous Location Motor, Enclosure: TEFC, C Dim (inches): 25,
Applications | |
For pumps, fans, compressors, conveyors and tools located in hazardous locations as defined by Class and Group. | |
Features | |
UL Listed & CSA Certified | Sealed Bearings 56-140, Shielded 180-360, Open 400-440 Frames |
All Cast Iron Construction (140 Frame Has Steel Base) | Class F Insulation, Listed For Ambients -25C To +40C |
Corrosion Resistant Mill & Chemical Duty Paint | Brass Breather Plug |
Stainless Steel Nameplate & Zinc Plated Hardware | Suitable For Inverter Use Per Policy Statement In Introduction, 2:1 CT(See Page vii) |
Shaft Slinger On Pulley End For IP54 Protection | Class I (Group D), T2B Temperature Code |
Cast Iron Inner Bearing Caps (180 Frame & Larger) | 1.15 Service Factor On 60 Hertz Sinewave Power |
40C Ambient, NEMA Design B Performance On 60 Hz Sine Wave Power | |
Regreasable Bearings 180 Frame & Up, Lifting Provisions 180 Frame & Up | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
U.S. Motors Model Number |
YC20P2B |
HP |
20 |
RPM |
1800 |
Voltage |
230/460 |
Phase |
Three |
Frame |
256T |
Full Load Eff. |
93 |
Full Load Amps |
48/23.8 |
Type |
Corro Duty Hazardous Location Motor |
Enclosure |
TEFC |
C Dim (inches) |
25 |
Class, Group, Temp Code |
Class I, Group D, Temp Code T2B |
Motor Notes |
Single Label |
Apx. Wt. (lbs.) |
372 |
Support Documents (pdf) | ||||
Product Literature |
