U.S. Motors

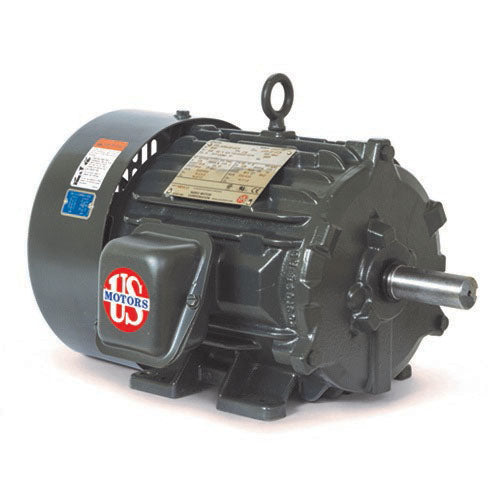

HD15P4E U.S. Motors General Purpose World Motor Hostile Duty Motor (15 HP, 900 RPM, 230/460 Voltage, 286T Frame)

HD15P4E U.S. Motors General Purpose World Motor Hostile Duty Motor (15 HP, 900 RPM, 230/460 Voltage, 286T Frame)

HD15P4E

$3,023.43 USD
$3,023.43 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

U.S. Motors HD15P4E, General Purpose Hostile Duty Motor Type, 15 HP, 900 RPM, 230/460 Voltage, 286T Frame,

Applications
For pulp & paper plants, saw mills, mines, foundries, chemical plants, waste management facilities, and other process-related industries requiringprotection within harsh operating conditions.
Features
Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
Corrosion Resistant Mill & Chemical Duty Paint
Cast Iron Frame, Cast Iron End Brackets
Stainless Steel Nameplate & Zinc Plated Hardware
Shaft Slinger On Pulley End For IP54 Protection
Dual Voltage 230/460 Volts (1-100 HP)
Self-Certified Class I, Division 2, Groups A, B, C, & D Double Shielded
Steel Fan Cover & Conduit Box
Field Convertible To F2 Mounting
Condensation Drains With Plastic Plugs
Bearing Caps On 400-440

Specifications

Brand
U.S. Motors
Catalog Number
HD15P4E
Type
General Purpose Hostile Duty Motor
HP
15
RPM
900
Voltage
230/460
Frame
286T
SF
1 .15
"C" DIM (Inches)
27 .5
Enclosure
TEFC
Symbol
DS-3HDW
Type
Hostile Duty
Efficiency
NEMA Premium
Class
Class F Insulation
Notes
See Support Documents

Support Documents (pdf)
View full details
