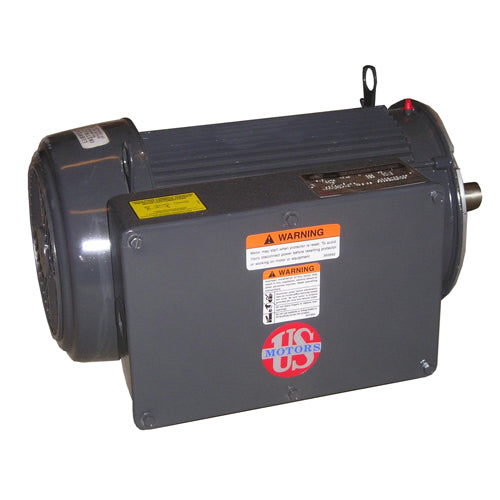

FDU5CM2K18C U.S. Motors Capacitor Start Agriculture Motors (5 HP, 208-230 Voltage, Single Phase, 1800 RPM)

FDU5CM2K18C U.S. Motors Capacitor Start Agriculture Motors (5 HP, 208-230 Voltage, Single Phase, 1800 RPM)

FDU5CM2K18C

$1,400.79 USD
$1,400.79 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

U.S. Motors: FDU5CM2K18C, HP: 5, RPM: 1800, Voltage: 208-230, Phase: Single, Frame: 184TC, C Dim. (inches): 18.7, Full Load Amps: 22.2/24.0, Enclosure: TEFC, Type: U.S. Motors Capacitor Start Agriculture Motor,

Applications
For powering agitators, augers, compressors, conveyors, feeders and hay hoists. High torque motors are used on barn cleaners, manure pumps and silo unloaders.
Features
Class F Insulation Plastic Fan & Fan Cover
Typical Starting Torque 300% Of Full Load F1 Assembly
Extruded Aluminum Frame (180-210 Frame) Manual Reset Thermal Overload Protector
Plastic Fan & Fan Cover Double Shielded Bearings w/Low-Temp Grease (Regreasable Shaft End)
Removable Condensation Drains For Vertical Mounting Fully Gasketed Steel Conduit Box
Die Cast Aluminum Brackets With Steel Bearing Inserts

Tech Specs

Brand
U.S. Motors/Emerson
U.S. Motors Model Number
FDU5CM2K18C
HP
5
RPM
1800
Voltage
208-230
Phase
Single
Frame
184TC
SF
1.15
C Dim. (inches)
18.7
Full Load Amps
22.2/24.0
Motor Mount
C-Face
Enclosure
TEFC
Notes
Ultra High Torque, Capacitor Start
Type
U.S. Motors Capacitor Start Agriculture Motor
Apx. Wt. (lbs.)
100
