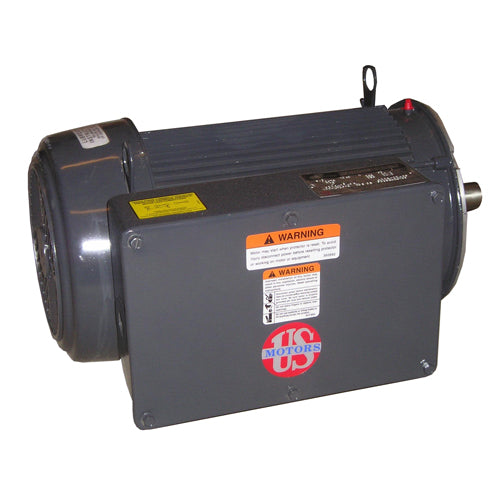

FDU10CM2K21 U.S. Motors Capacitor Start Agriculture Motors (10 HP, 230 Voltage, Single Phase, 1800 RPM)
FDU10CM2K21 U.S. Motors Capacitor Start Agriculture Motors (10 HP, 230 Voltage, Single Phase, 1800 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:FDU10CM2K21
Regular price
$1,362.03 USD
Regular price
Sale price
$1,362.03 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
U.S. Motors: FDU10CM2K21, HP: 10, RPM: 1800, Voltage: 230, Phase: Single, Frame: 215T, C Dim. (inches): 21.3, Full Load Amps: 41, Enclosure: TEFC, Type: U.S. Motors Capacitor Start Agriculture Motor,
| Applications | |
| For powering agitators, augers, compressors, conveyors, feeders and hay hoists. High torque motors are used on barn cleaners, manure pumps and silo unloaders. | |
| Features | |
| Class F Insulation | Plastic Fan & Fan Cover |
| Typical Starting Torque 300% Of Full Load | F1 Assembly |
| Extruded Aluminum Frame (180-210 Frame) | Manual Reset Thermal Overload Protector |
| Plastic Fan & Fan Cover | Double Shielded Bearings w/Low-Temp Grease (Regreasable Shaft End) |
| Removable Condensation Drains For Vertical Mounting | Fully Gasketed Steel Conduit Box |
| Die Cast Aluminum Brackets With Steel Bearing Inserts | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
U.S. Motors Model Number |
FDU10CM2K21 |
HP |
10 |
RPM |
1800 |
Voltage |
230 |
Phase |
Single |
Frame |
215T |
SF |
1.15 |
C Dim. (inches) |
21.3 |
Full Load Amps |
41 |
Motor Mount |
Footed |
Enclosure |
TEFC |
Notes |
Ultra High Torque, Capacitor Start |
Type |
U.S. Motors Capacitor Start Agriculture Motor |
Apx. Wt. (lbs.) |
175 |
Support Documents (pdf) | ||||
| Product Literature | ||||
