U.S. Motors

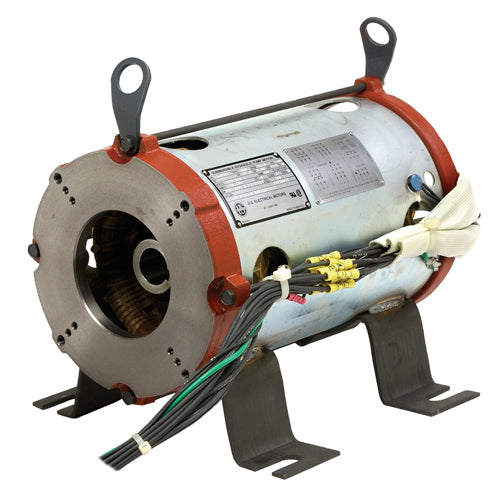

EZ50S1GZ U.S. Motors Submersible Elevator Motors (50 HP, 575 Voltage, Three Phase, 3600 RPM)
EZ50S1GZ U.S. Motors Submersible Elevator Motors (50 HP, 575 Voltage, Three Phase, 3600 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:EZ50S1GZ
Regular price
$2,618.84 USD
Regular price
Sale price
$2,618.84 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
U.S. Motors: EZ50S1GZ, HP: 50, RPM: 3600, Voltage: 575, Phase: Three, Frame: 160ZBS, Type: Submersible Elevator Motor, SF: 1, C Dim. (inches): 17.5, Flange: z, Brand : U.S. Motors/Emerson,
| Applications | |
| Z-Flanged motors are suitable for use in elevators in low rise buildings using Allweiler pumps (SUB 140, 210 & 280) or IMO pumps (3SIC-187, 3SIC-200, 3SIC-218, 3SIC-250 & 4SIC-275). L32 Flanged motors for Allweiler pumps (SUA 140, 210, 280 & 440). Compatibility current at time of publication. | |
| Features | |
| Class F Insulation | 112" External Leads (Butt Splices At Approx. 12" & 47" From Housing) |
| Zinc Plated Frame, 32 MM Shaft, Lifting Provisions On Brackets | Designed For Wye-Delta Starting |
| Stainless Steel Nameplate On Motor & Mylar For Wall Mount | Intermittent Duty (Rated 80 Starts/Hour In 50C Oil or 120 Starts/Hour In 40C Oil) |
| 70C Thermostat Located On Motor Frame | CSA Certified (#LR39413) & UL Component Recognized (#E51488) |
| Single Ball Bearing Design To Fit Most Allweiler & IMO Sub. Pumps | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
U.S. Motors Model Number |
EZ50S1GZ |
HP |
50 |
RPM |
3600 |
Voltage |
575 |
Phase |
Three |
Frame |
160ZBS |
Full Load Amps |
52 |
Type |
Submersible Elevator Motor |
SF |
1 |
C Dim. (inches) |
17.5 |
Flange |
z |
Notes |
See Product Literature |
0 |
0 |
Apx. Wt. (lbs.) |
112 |
Support Documents (pdf) | ||||
| Product Literature | ||||
