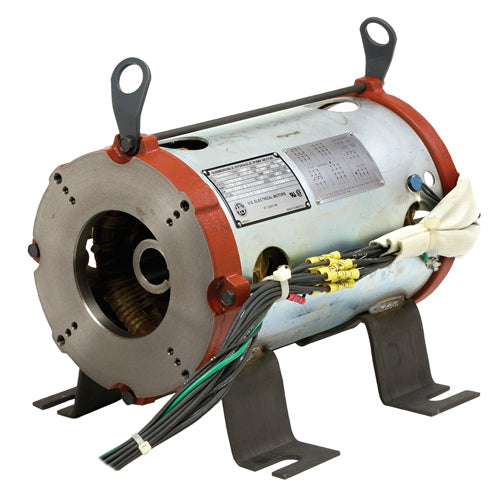

EZ40S1BZ U.S. Motors Submersible Elevator Motors (40 HP, 230/460 Voltage, Three Phase, 3600 RPM)

U.S. Motors: EZ40S1BZ, HP: 40, RPM: 3600, Voltage: 230/460, Phase: Three, Frame: 160ZBS, Type: Submersible Elevator Motor, SF: 1, C Dim. (inches): 17.5, Flange: z, Brand : U.S. Motors/Emerson,

Applications
Z-Flanged motors are suitable for use in elevators in low rise buildings using Allweiler pumps (SUB 140, 210 & 280) or IMO pumps (3SIC-187, 3SIC-200, 3SIC-218, 3SIC-250 & 4SIC-275). L32 Flanged motors for Allweiler pumps (SUA 140, 210, 280 & 440). Compatibility current at time of publication.
Features
Class F Insulation	112" External Leads (Butt Splices At Approx. 12" & 47" From Housing)
Zinc Plated Frame, 32 MM Shaft, Lifting Provisions On Brackets	Designed For Wye-Delta Starting
Stainless Steel Nameplate On Motor & Mylar For Wall Mount	Intermittent Duty (Rated 80 Starts/Hour In 50C Oil or 120 Starts/Hour In 40C Oil)
70C Thermostat Located On Motor Frame	CSA Certified (#LR39413) & UL Component Recognized (#E51488)
Single Ball Bearing Design To Fit Most Allweiler & IMO Sub. Pumps

Tech Specs
Brand	U.S. Motors/Emerson
U.S. Motors Model Number	EZ40S1BZ
HP	40
RPM	3600
Voltage	230/460
Phase	Three
Frame	160ZBS
Full Load Amps	106/53
Type	Submersible Elevator Motor
SF	1
C Dim. (inches)	17.5
Flange	z
Notes	See Product Literature
0	0
Apx. Wt. (lbs.)	112

Support Documents (pdf)
Product Literature
