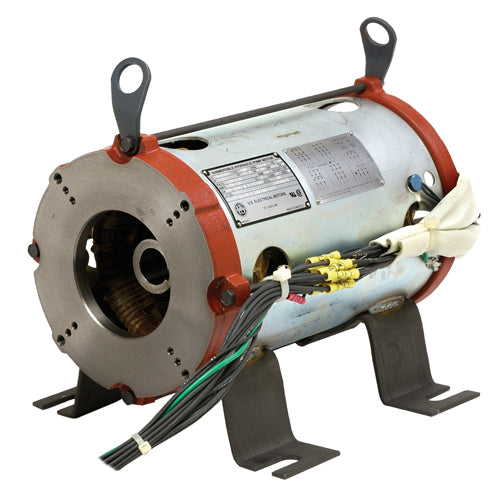

EZ30S1HZ U.S. Motors Submersible Elevator Motors (30 HP, 200 Voltage, Three Phase, 3600 RPM)
EZ30S1HZ U.S. Motors Submersible Elevator Motors (30 HP, 200 Voltage, Three Phase, 3600 RPM)
SKU:EZ30S1HZ
Regular price
$1,389.31 USD
Regular price
Sale price
$1,389.31 USD
Unit price
/
per
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
U.S. Motors: EZ30S1HZ, HP: 30, RPM: 3600, Voltage: 200, Phase: Three, Frame: 160ZBS, Type: Submersible Elevator Motor, SF: 1, C Dim. (inches): 14.1, Flange: z, Brand : U.S. Motors/Emerson,
Applications | |
Z-Flanged motors are suitable for use in elevators in low rise buildings using Allweiler pumps (SUB 140, 210 & 280) or IMO pumps (3SIC-187, 3SIC-200,3SIC-218, 3SIC-250 & 4SIC-275). L32 Flanged motors for Allweiler pumps (SUA 140, 210, 280 & 440). Compatibility current at time of publication. | |
Features | |
Class F Insulation | 112" External Leads (Butt Splices At Approx. 12" & 47" From Housing) |
Zinc Plated Frame, 32 MM Shaft, Lifting Provisions On Brackets | Designed For Wye-Delta Starting |
Stainless Steel Nameplate On Motor & Mylar For Wall Mount | Intermittent Duty (Rated 80 Starts/Hour In 50C Oil or 120 Starts/Hour In 40C Oil) |
70C Thermostat Located On Motor Frame | CSA Certified (#LR39413) & UL Component Recognized (#E51488) |
Single Ball Bearing Design To Fit Most Allweiler & IMO Sub. Pumps | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
U.S. Motors Model Number |
EZ30S1HZ |
HP |
30 |
RPM |
3600 |
Voltage |
200 |
Phase |
Three |
Frame |
160ZBS |
Full Load Amps |
100 |
Type |
Submersible Elevator Motor |
SF |
1 |
C Dim. (inches) |
14.1 |
Flange |
z |
Notes |
See Product Literature |
0 |
0 |
Apx. Wt. (lbs.) |
111 |
