U.S. Motors

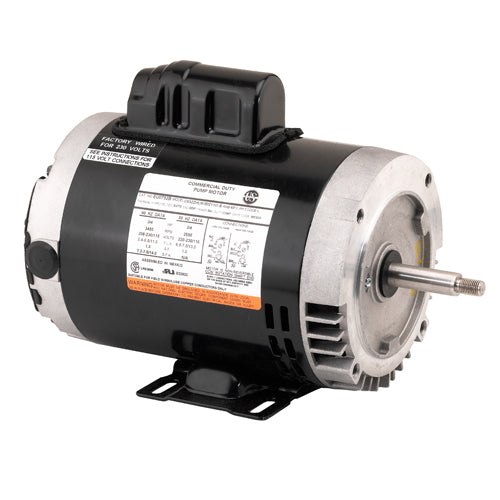

EC1004B U.S. Motors US Motors Special Application Commercial Pump Motor (1 HP, 115/208-230 Voltage, 56C Frame, Single Phase, ODP, C-Face Type)
EC1004B U.S. Motors US Motors Special Application Commercial Pump Motor (1 HP, 115/208-230 Voltage, 56C Frame, Single Phase, ODP, C-Face Type)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:EC1004B
Regular price
$604.43 USD
Regular price
Sale price
$604.43 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
U.S. Motors EC1004B, Special Application Commercial Pump Motors Type, 1 HP, 115/208-230 Voltage, 56C Frame, Single Phase, ODP Enclosure, C-Face Type,
| Applications | |
| For use on chiller, condensate, and other HVAC duty pumps, booster and irrigation pumps, dishwasher and part washer pumps, watering and de watering pumps, and other commercial duty pumping applications. | |
| Features | |
| Double Sealed Ball Bearings - Locked Drive End Bearing | |
| 50/60 Hertz Motors have 1.0 Service Factor on 50 Hertz | |
| Shaft Threads for 56J Mount: 7/16-20 UNC-2A | |
| 208v will not be marked on DOE regulated spread-voltage motors. Refer to online data. | |
| Reversible Rotation | |
| Continuous Duty | |
Specifications | |
Brand |
U.S. Motors |
Catalog Number |
EC1004B |
Type |
Special Application Commercial Pump Motors |
Series |
Pump Motors |
HP |
1 |
Voltage |
115/208-230 |
Frame |
56C |
Catalog Number |
EC1004B |
Symbol |
DS-3FMP |
Phase |
Single |
Enclosure |
ODP |
Type |
C-Face |
SF |
1.15 |
"C" Dim.(inches) |
11.6 |
Ship Wt. (lbs) |
31 |
Max Amps |
16.4/8.4-8.2 |
Notes |
24 |
Assembly |
F1 |
Rotation |
Reversible |
Insulation |
Class B |
Ambient |
40 C |
Notes |
See support documents |
Support Documents (pdf) | ||||
