U.S. Motors

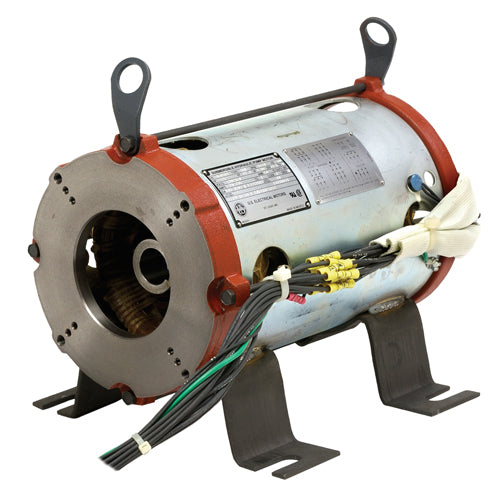

E40S1BZ U.S. Motors Submersible Elevator Motors (40 HP, 230/460 Voltage, Three Phase, 3600 RPM)

E40S1BZ U.S. Motors Submersible Elevator Motors (40 HP, 230/460 Voltage, Three Phase, 3600 RPM)

E40S1BZ

$1,564.92 USD
$1,564.92 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

U.S. Motors: E40S1BZ, HP: 40, RPM: 3600, Voltage: 230/460, Phase: Three, Frame: 160LCS, Type: Submersible Elevator Motor, SF: 1, C Dim. (inches): 17.4, Flange: L33, Brand : U.S. Motors/Emerson,
Applications
Z-Flanged motors are suitable for use in elevators in low rise buildings using Allweiler pumps (SUB 140, 210 & 280) or IMO pumps (3SIC-187, 3SIC-200, 3SIC-218, 3SIC-250 & 4SIC-275). L32 Flanged motors for Allweiler pumps (SUA 140, 210, 280 & 440). Compatibility current at time of publication.
Features
Class F Insulation 112" External Leads (Butt Splices At Approx. 12" & 47" From Housing)
Zinc Plated Frame, 32 MM Shaft, Lifting Provisions On Brackets Designed For Wye-Delta Starting
Stainless Steel Nameplate On Motor & Mylar For Wall Mount Intermittent Duty (Rated 80 Starts/Hour In 50C Oil or 120 Starts/Hour In 40C Oil)
70C Thermostat Located On Motor Frame CSA Certified (#LR39413) & UL Component Recognized (#E51488)
Single Ball Bearing Design To Fit Most Allweiler & IMO Sub. Pumps

Tech Specs

Brand
U.S. Motors/Emerson
U.S. Motors Model Number
E40S1BZ
HP
40
RPM
3600
Voltage
230/460
Phase
Three
Frame
160LCS
Full Load Amps
106/53
Type
Submersible Elevator Motor
SF
1
C Dim. (inches)
17.4
Flange
L33
Notes
See Product Literature
0
0
Apx. Wt. (lbs.)
112

Support Documents (pdf)

Product Literature
