U.S. Motors

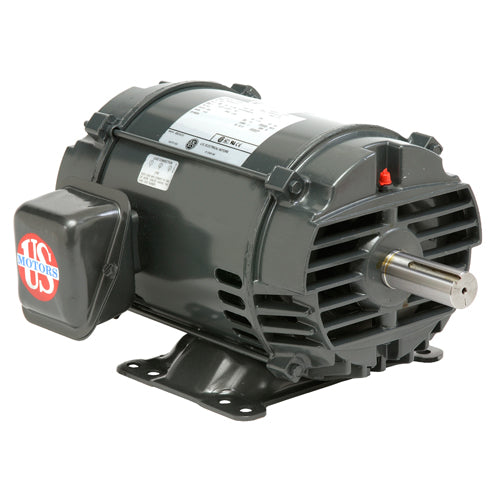

DH25S2HF U.S. Motors Dry Hydraulic Elevator Motors (25 HP, 200 Voltage, Three Phase, 1800 RPM)
DH25S2HF U.S. Motors Dry Hydraulic Elevator Motors (25 HP, 200 Voltage, Three Phase, 1800 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:DH25S2HF
Regular price
$2,772.23 USD
Regular price
Sale price
$2,772.23 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
U.S. Motors: DH25S2HF, HP: 25, RPM: 1800, Voltage: 200, Phase: Three, Frame: 256T, Full Load Amps: 72, Type: Dry Hydraulic Elevator Motor, SF: 1, C Dim. (inches): 23.2, 0: 0,
| Applications |
| Suitable for use on elevators where dry hydraulic motors are required, usually five stories or less. |
| Features |
| NEMA and CSA Certified |
| 1800 RPM |
| NEMA Design B |
| 80 Starts Per Hour |
| F1 Assembly |
| 60 Hertz |
| Class F Insulation |
| 1.00 Service Factor |
| Intermittent Duty Rated For Operation in a 40C Ambient Temperature |
| Ball Bearing Design |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
U.S. Motors Model Number |
DH25S2HF |
HP |
25 |
RPM |
1800 |
Voltage |
200 |
Phase |
Three |
Frame |
256T |
Full Load Amps |
72 |
Type |
Dry Hydraulic Elevator Motor |
SF |
1 |
C Dim. (inches) |
23.2 |
Notes |
See Product Literature |
Apx. Wt. (lbs.) |
160 |
Support Documents (pdf) | ||||
| Product Literature | ||||
