U.S. Motors

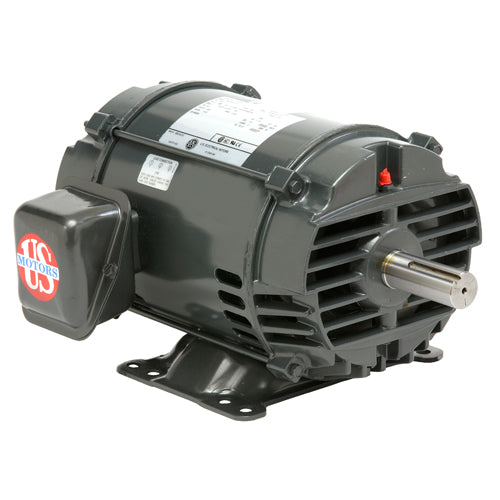

DH125S2GF U.S. Motors Dry Hydraulic Elevator Motors (125 HP, 575 Voltage, Three Phase, 1800 RPM)
DH125S2GF U.S. Motors Dry Hydraulic Elevator Motors (125 HP, 575 Voltage, Three Phase, 1800 RPM)
SKU:DH125S2GF
Regular price
$8,545.83 USD
Regular price
Sale price
$8,545.83 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
U.S. Motors: DH125S2GF, HP: 125, RPM: 1800, Voltage: 575, Phase: Three, Frame: 404T, Full Load Amps: 114, Type: Dry Hydraulic Elevator Motor, SF: 1, C Dim. (inches): 32.6, 0: 0,
| Applications |
| Suitable for use on elevators where dry hydraulic motors are required, usually five stories or less. |
| Features |
| NEMA and CSA Certified |
| 1800 RPM |
| NEMA Design B |
| 80 Starts Per Hour |
| F1 Assembly |
| 60 Hertz |
| Class F Insulation |
| 1.00 Service Factor |
| Intermittent Duty Rated For Operation in a 40C Ambient Temperature |
| Ball Bearing Design |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
U.S. Motors Model Number |
DH125S2GF |
HP |
125 |
RPM |
1800 |
Voltage |
575 |
Phase |
Three |
Frame |
404T |
Full Load Amps |
114 |
Type |
Dry Hydraulic Elevator Motor |
SF |
1 |
C Dim. (inches) |
32.6 |
Notes |
See Product Literature |
Apx. Wt. (lbs.) |
750 |
Support Documents (pdf) | ||||
| Product Literature | ||||
