U.S. Motors

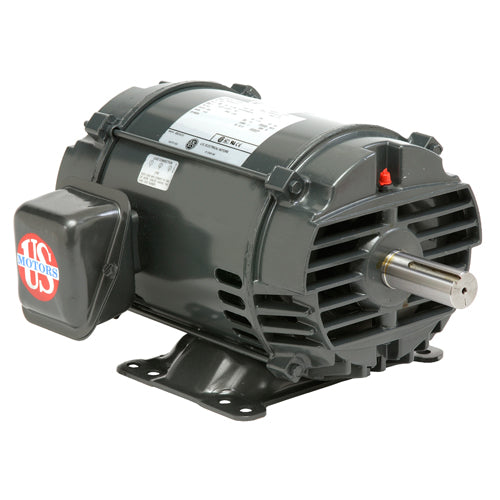

DH100S2BF U.S. Motors Dry Hydraulic Elevator Motors (100 HP, 230/460 Voltage, Three Phase, 1800 RPM)
DH100S2BF U.S. Motors Dry Hydraulic Elevator Motors (100 HP, 230/460 Voltage, Three Phase, 1800 RPM)
SKU:DH100S2BF
Regular price
$7,606.87 USD
Regular price
Sale price
$7,606.87 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
U.S. Motors: DH100S2BF, HP: 100, RPM: 1800, Voltage: 230/460, Phase: Three, Frame: 365T, Full Load Amps: 235/118, Type: Dry Hydraulic Elevator Motor, SF: 1, C Dim. (inches): 29.7, 0: 0,
| Applications |
| Suitable for use on elevators where dry hydraulic motors are required, usually five stories or less. |
| Features |
| NEMA and CSA Certified |
| 1800 RPM |
| NEMA Design B |
| 80 Starts Per Hour |
| F1 Assembly |
| 60 Hertz |
| Class F Insulation |
| 1.00 Service Factor |
| Intermittent Duty Rated For Operation in a 40C Ambient Temperature |
| Ball Bearing Design |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
U.S. Motors Model Number |
DH100S2BF |
HP |
100 |
RPM |
1800 |
Voltage |
230/460 |
Phase |
Three |
Frame |
365T |
Full Load Amps |
235/118 |
Type |
Dry Hydraulic Elevator Motor |
SF |
1 |
C Dim. (inches) |
29.7 |
Notes |
See Product Literature |
Apx. Wt. (lbs.) |
600 |
Support Documents (pdf) | ||||
| Product Literature | ||||
