U.S. Motors

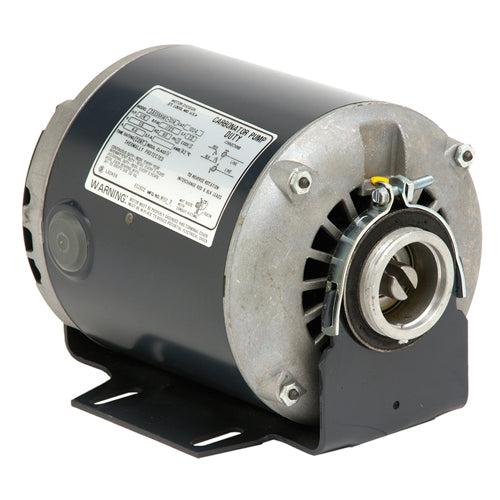

6079 U.S. Motor US Motors Special Application Carbonator Pump Motor (1/3 HP, 100-120 & 200-240 Voltage, 48YZ Frame, ODP)
6079 U.S. Motor US Motors Special Application Carbonator Pump Motor (1/3 HP, 100-120 & 200-240 Voltage, 48YZ Frame, ODP)
SKU:6079
Regular price
$189.20 USD
Regular price
Sale price
$189.20 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
Couldn't load pickup availability
U.S. Motor 6079, Special Application Carbonator Pump Motor, Split Phase Type, 1/3 HP, 100-120 & 200-240 Voltage, 48YZ Frame, ODP ,
| Applications | |
| Designed end shield with extended hub and short slotted shaft for close coupling carbonator pump to motor. | |
| Features | |
| For Carbonator Duty Only | |
| Reversible Rotation | |
| Automatic Reset Thermal Overload Protector | |
| Threaded Conduit Hub | |
| All Ball Bearing Construction | |
| Green Ground Lead | |
| Special Slotted Shaft | |
| Split Phase | |
Specifications | |
Brand |
U.S. Motor |
Catalog Number |
6079 |
Type |
Special Application Carbonator Pump Motor, Split Phase |
Series |
Commercial Pump Motors |
HP |
1/3 |
Voltage |
100-120 & 200-240 V |
Frame |
48YZ |
Symbol |
DS-3FMP |
SF |
1 |
Enclosure |
ODP |
Ship Wt. (lbs) |
16 |
Full Load Amps |
6.4-6.3/3.0-3.1 |
Notes |
61 |
Notes |
See support documents |
Support Documents (pdf) |
