U.S. Motors

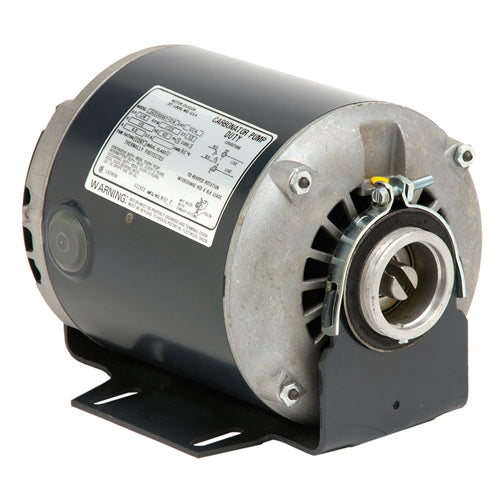

1004 U.S. Motor US Motors Special Application Carbonator Pump Motor (1/4 HP, 115 Voltage, 48YZ Frame, ODP)
1004 U.S. Motor US Motors Special Application Carbonator Pump Motor (1/4 HP, 115 Voltage, 48YZ Frame, ODP)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:1004
Regular price
$142.51 USD
Regular price
Sale price
$142.51 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
U.S. Motor 1004, Special Application Carbonator Pump Motor, Split Phase Type, 1/4 HP, 115 Voltage, 48YZ Frame, ODP ,
| Applications | |
| Designed end shield with extended hub and short slotted shaft for close coupling carbonator pump to motor. | |
| Features | |
| For Carbonator Duty Only | |
| Reversible Rotation | |
| Automatic Reset Thermal Overload Protector | |
| Threaded Conduit Hub | |
| All Ball Bearing Construction | |
| Green Ground Lead | |
| Special Slotted Shaft | |
| Split Phase | |
Specifications | |
Brand |
U.S. Motor |
Catalog Number |
1004 |
Type |
Special Application Carbonator Pump Motor, Split Phase |
Series |
Commercial Pump Motors |
HP |
1/4 |
Voltage |
115 V |
Frame |
48YZ |
Symbol |
DS-3FMP |
SF |
1 |
Enclosure |
ODP |
Ship Wt. (lbs) |
15 |
Full Load Amps |
5 |
Notes |
61 |
Notes |
See support documents |
Support Documents (pdf) |
